NTC-22.01.1 “Study of blackbody”

The training laboratory unit allows to get practical experience in measuring heat radiation energy, to measure dependence of power radiated by body on its temperature.





Categories: ,
The training laboratory unit allows to get practical experience in measuring heat radiation energy, to measure dependence of power radiated by body on its temperature.

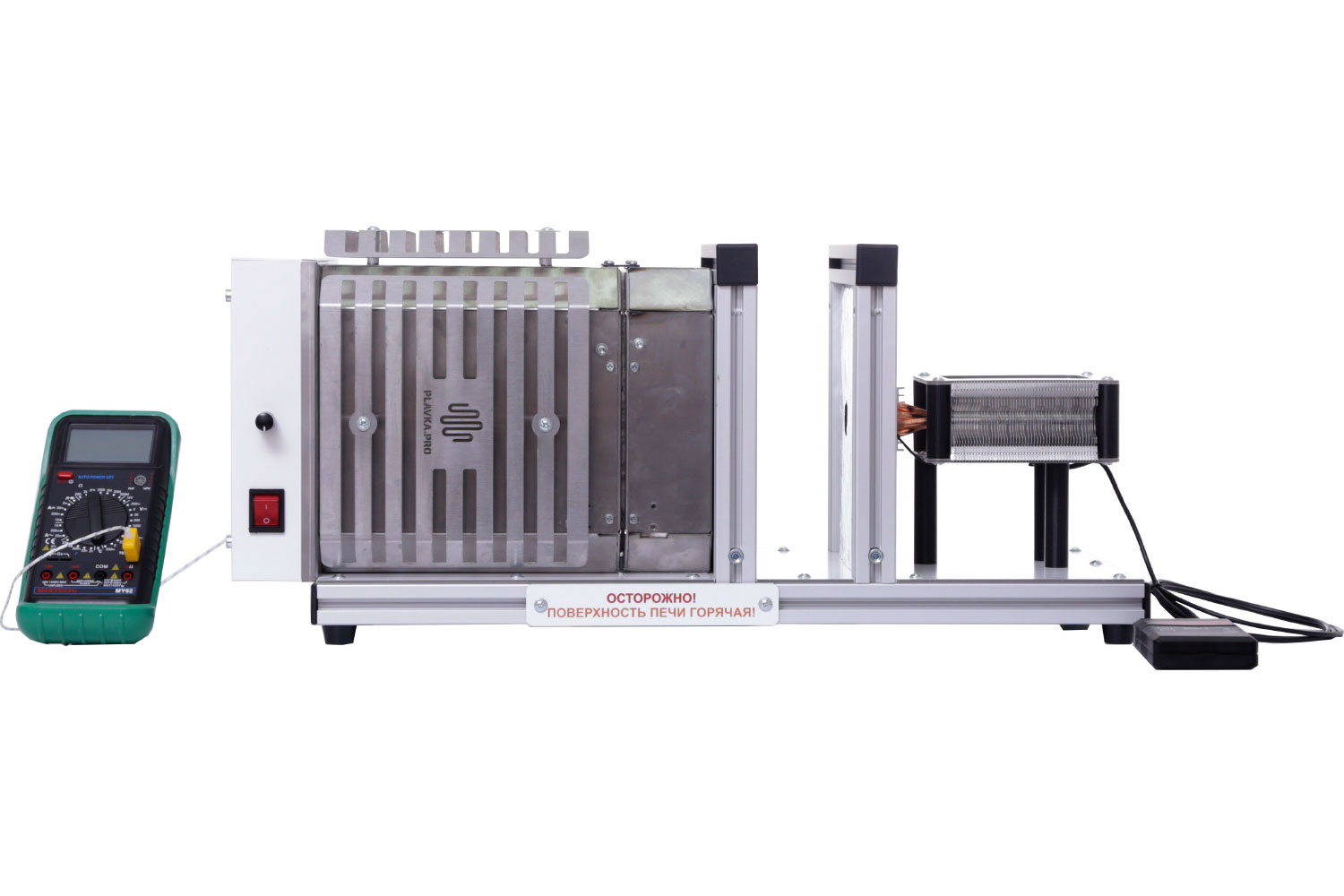

The unit is a portable desktop version. The main element of the stand is an oven for heating an investigated body, which is mounted on a metal frame. The temperature of a body is measured by a thermocouple. The intensity of radiation is measued by a thermal flux sensor (not included in default set) fixed on a carrier, between a body and the sensor there’s a thermal shield. From the top the oven is covered by a housing.

Software and methodical documentation supplemented to the stand: methodical and technical documentation set intended for academic staff.



Experiments provided

  1. Investigation of the laboratory training unit.
  2. Investigation of radiated power to temperature dependence of the body.

Technical specifications

Power supply 1~220V, 50Hz
Power consumption, W 500
Stand overall dimensions
  Width, mm 370
  Height, mm 300
  Depth, mm 200
Weight, kg 5

Scope of delivery

  • training laboratory unit – 1 pc.;
  • multimeter – 1 pc.;
  • CD with supplemental documentation – 1 pc.;
  • passport – 1 pc.

Necessary additional equipment

  • Heat flux sensor
