NTC-15.27 “Injection system Common Rail”
Br0.00
The training laboratory stand is dedicated for using it as training equipment at second specialized colleges and higher education establishments for performing laboratory classes.
Categories: Automotive and tractor equipment, Automotive equipment

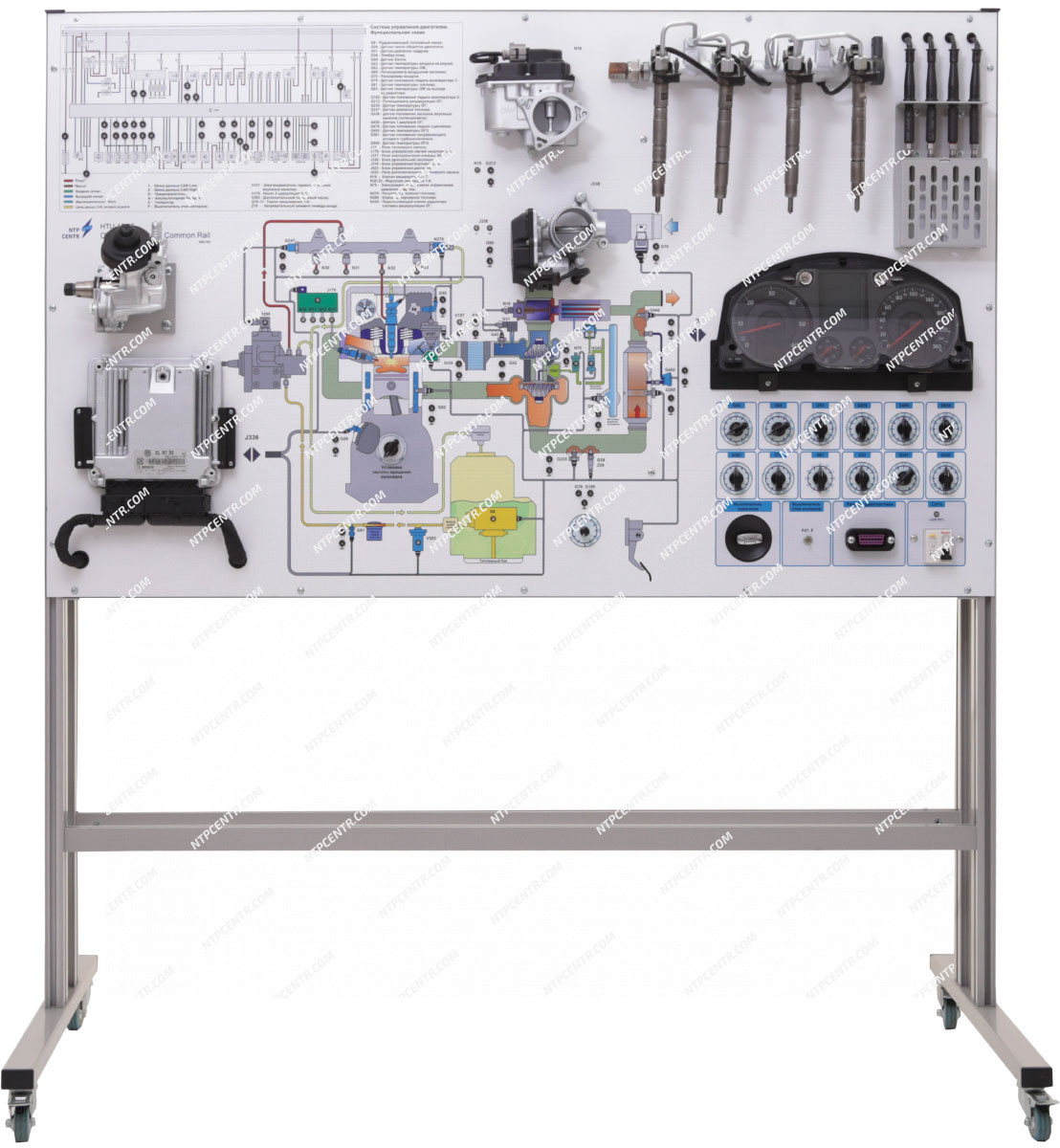

Structurally the training laboratory equipment has mounted the following elements: electronic cards, fuses and relays blocks, a front panel.
On the front panel is drawn up the functional circuit of Common Rail injection system, which includes the following:
- injection system sensors;
- executive devices (glow plugs, injectors, throttle valve, etc.);
- instrument cluster panel;
- engine control unit.
On the panel is presented a graphical circuit that makes it possible to study:
- diagram and details of the engine power supply system;
- mechanical part of the engine with precise location of sensors and actuators in the engine;
- circuit and sensors of the engine management system.
The engine control system has a built-in fault input unit, for its computer diagnostics is provided an OBD2 diagnostic connector on the panel. To examine the sensor signals, the panel has jacks for connecting an oscilloscope.
The stand is accompanied with a set of methodological and technical documentation for the teaching staff.
Experiments provided
- Study of the elements of the engine management system with the Common Rail injection system. Functional circuit.
- Studying the principles of diagnosing the control unit, sensors and actuators. Entering faults.
- Studying the components of the power supply system. High and low pressure stages.
- Studying the sensors for supercharging control systems, exhaust gas recirculation, particulate filter, glow plugs.
Technical specifications
| Power supply | ~220V 50Hz (single-phase 220V 50Hz) | |
| Power consumption, Watt, max | 350 | |
| Stand overall dimensions, max: | ||
| Width, mm | 1310 | |
| Height, mm | 1650 | |
| Depth, mm | 600 | |
| Weight, kg, max | 70 | |
| Allowed continuous operation time, minutes, max | 30 | |
Scope of delivery
- laboratory stand – 1 pc.;
- diagnostic scanner – 1 pc.;
- set of jumpers – 1 pc.;
- passport – 1 pc.;
- accompanying materials in electronic format – 1 pc.
