NTC-03.10 “Construction of the aerial fiber-optic transmission system”

Br0.00

The training laboratory equipment is dedicated for getting practical skills of FOCL mounting between column, mounting the optical terminal box at the column, mounting and connection cross module, splitter connection.

Categories: ,

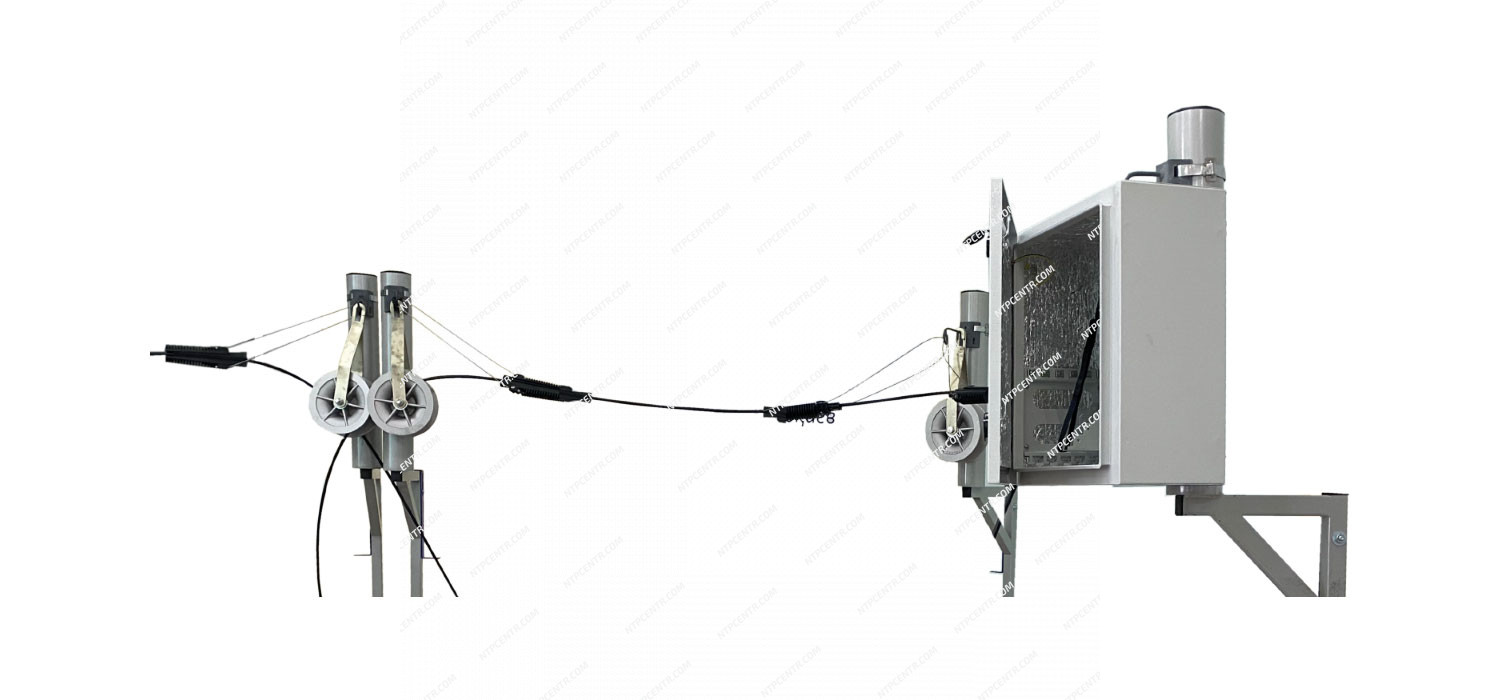

The training unit is represented as built-up frame from metal profile tube with column imitators and mounted optic cable on it.

With the present stand can be studied:

  • mounting FOCL between columns;
  • mounting the optical terminal box as per circuits.

The training system is supplied with technical documentation intended for the teaching staff.



Technical specifications

Stand overall dimensions, max:
  width, mm 5000
  height, mm 2500
  depth, mm 2500
Weight, kg, max 100

Scope of delivery

  • left column – 1 pc.;
  • central column – 1 pc.;
  • right column – 1 pc.;
  • connection frame – 2 pcs.;
  • connection element straight – 16 pcs.;
  • connection element angled frontal – 4 pcs.;
  • connection element angled backside – 4 pcs.;
  • wall support arm – 3 pcs.;
  • fixing hardware – 1 set;
  • wrench №17 – 2 pcs.;
  • wrench №13 – 1 pc.;
  • passport – 1 pc.;
  • tensioning mount fitting – 2 pcs.;
  • supporting mounting point – 1 pc.;
  • optic cable – 30 m;
  • tension clamp – 4 pcs.;
  • hook sheave – 2 pcs.;
  • mounting band – 1 pack;
  • lock (clip) for mounting tape – 1 pack;
  • tensioning tongs for clamps – 1 pc.;
  • terminal box for outside placement – 1 pc.;
  • cross module – 1 pc.;
  • socket splitter – 1 pc.;
  • step-ladder – 1 pc.;
  • instruction for mounting – 1 pc.

Additional equipment (specified when ordering)

Necessary additional equipment:

  • Set for mounting the optic cable.
