NTC-16.18 “Elements of gas distribution station”

Br0.00

The training system is designed to be used as a teaching facility for secondary and higher educational institutions.



Categories: , ,

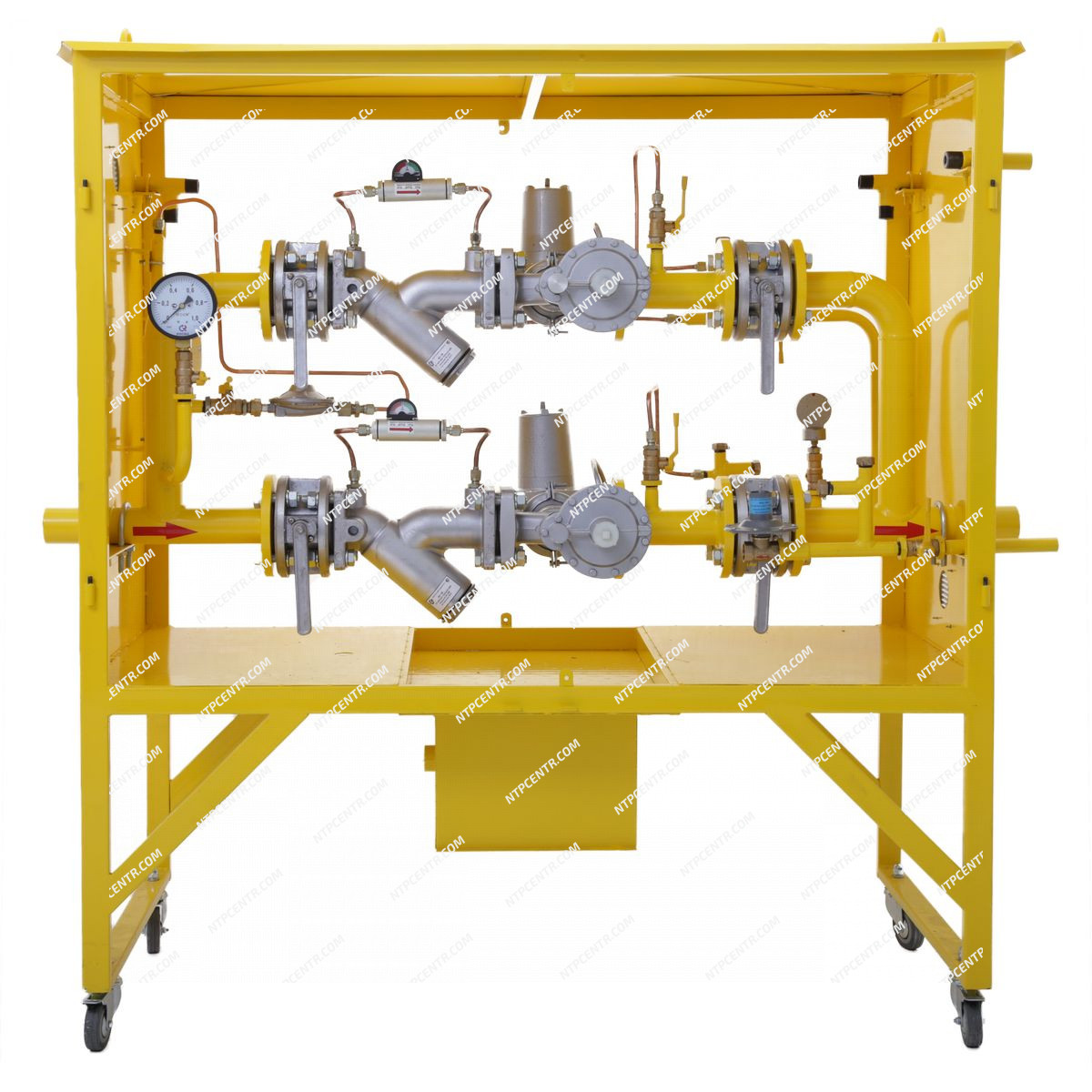

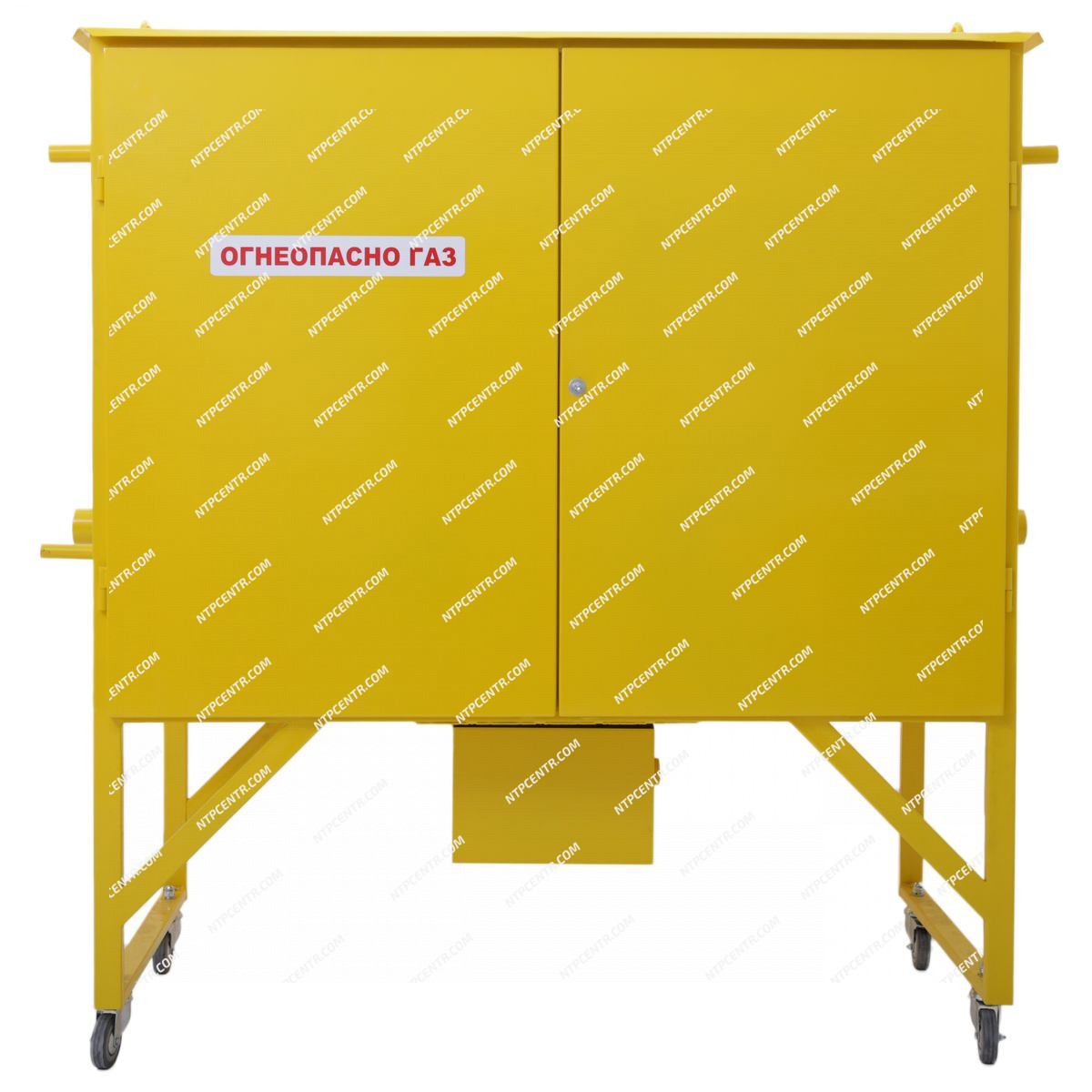

The training equipment consists of a cabinet-type gas regulation station and a mobile rack.

It provides conduction of practical experiments for studying the construction of gas regulation station with main and backup reduction lines.

The rack is used for equipment disassembly, stacking of dismounted elements and bench-work tools. There are longitudinal bars with steel shelves mounted, 300×400 mm (4 pcs.) and 300×600 mm (1 pc.)

The training system is supplied with a set of methodical and technical documentation intended for teaching staff.

Experiments provided

  1. Equipment arrangement and technical data.
  2. Structural elements of gas distribution station.
  3. Mounting of gas distribution station elements.

Technical specifications

Gas regulation station overall dimensions, max:



        width, mm

  1700



        height, mm

  1500



        depth, mm

  700

Rack overall dimensions, max:



        width, mm

  1100



        height, mm

  1700



        depth, mm

  750

Weight, kg, max:

  250

Scope of delivery

  • Gas regulation station – 1 pc.;
  • Rack – 1 pc.;
  • Toolset – 1 pc.;
  • Passport – 1 pc.
