NTC-15.61 “Cutaway model of a pump-injection unit”

Br0.00

The training laboratory unit is used to conduct the complex of laboratory works to study injection motors and to develop an initial knowledge of the engine structure under the courses of “Vehicle structure”, “Vehicles technical operation”.

Categories: ,

The model is intended for visual demonstration and study of the design, the principle of operation of the main internal components of the pump nozzle.

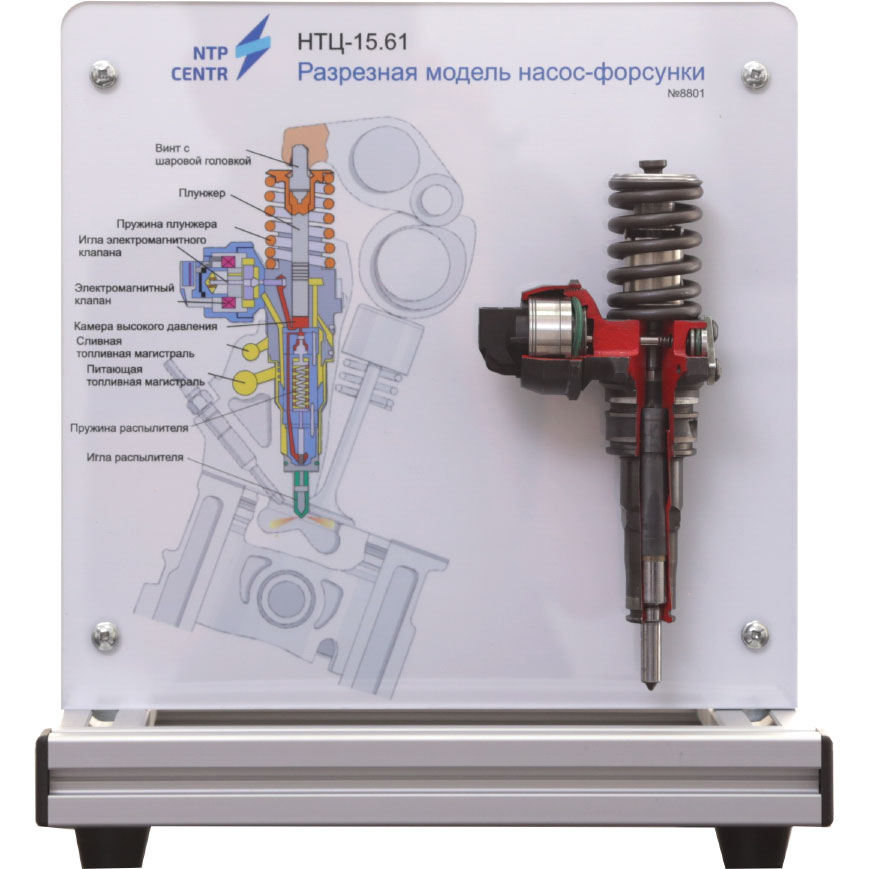

Structurally, the model is a pump nozzle mounted on a polycarbonate stand with a printed image.

Cutaways are mde in the pump-nozzle body to study device arrangement and operation principles of electromagnetic valve, pump (suction) module, and atomizer.

Experiments provided

  1. Structure of a pump-injection unit
  2. The operating principle of a pump-injection unit.

Technical specifications

Overall dimensions, max
  width, mm 250
  height, mm 280
  depth, mm 70
Weight, kg, max 2

Scope of delivery

  • training laboratory system – 1 pc.;
  • passport – 1 pc.
