NTC-09.07 “Actual escalator model”

Br0.00

The present training laboratory equipment is intended for using it at secondary specialized colleges and higher education establishments for performing laboratory classes.

This training equipment provides following experiments:

  • To study design and escalator operating principles;
  • Get skills of programming the Logic controller;
  • Review and edit escalator control programs via computer.

Categories: , ,

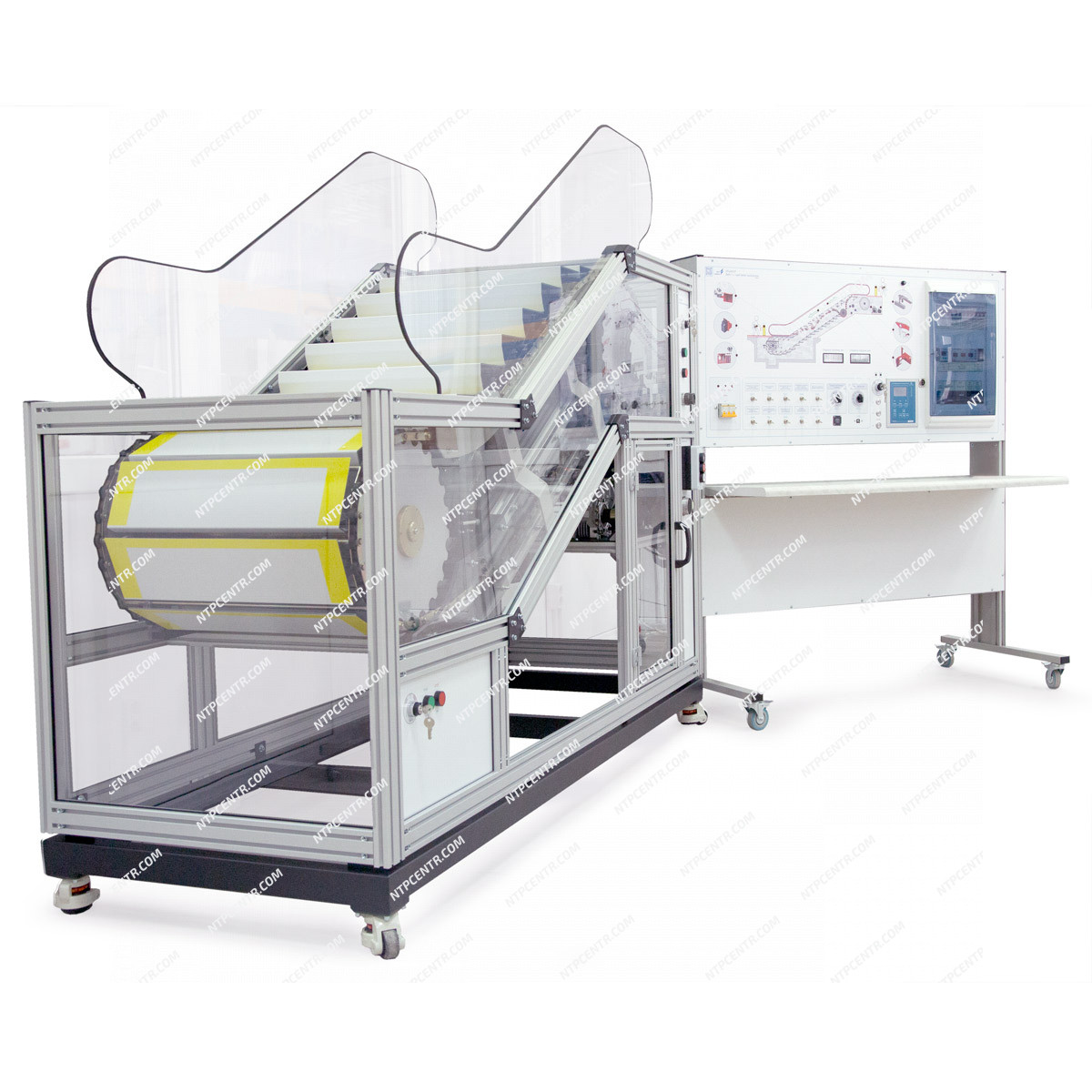

Structurally, the training laboratory equipment contains:
  • actual escalator model;
  • control panel.

Control panel is comprised of a body made from aluminium profile with mounted electric equipment, electronic cards, front panel and a table board of integrated working table.

Control unit body has mounted the following electrical items:

  • power supply unit +15В и +24В;
  • communication card with PC;
  • microprocessor-based instrument;
  • relay unit;
  • magnetic starter unit;
  • transformer unit.

On the front panel are placed:

  • incoming switch;
  • programmable logic controller (PLC);
  • faults introduction switches;
  • switchboard with power and control electric equipment;
  • USB-connector for setting the microprocessor-based instrument;
  • USB-connector for PC connection.

The actual escalator model has been made as a frame construction from aluminium profile with mounted on it general and auxiliary driven mechanisms and a shoe type brake. All moving parts are protected with transparent polycarbonate screens. For studying purpose of mechanisms there are double pivoted doors.

The model can be controlled both from the stand front panel and local control stations placed at the model itself.

The training laboratory equipment is accompanied with:

  • a set of methodical and technical guides for teaching stuff;
  • PLC software;
  • a software for performing the labs at dialogue mode via PC.

Experiments provided

  1. Studying the escalator model operation at mode «Operation».
  2. Studying the escalator model operation at mode «Repairs».
  3. Studying programming the actual escalator control system.

Technical specifications

Power supply 3~50 Hz, 380 V
Consumed power, kW, not more than 1.0
Control panel overall dimensions, not more than
  width, mm 1310
  height, mm 1470
  depth, mm 610
Escalator model overall dimensions, not more than
  width, mm 2100
  height, mm 1800
  depth, mm 800
Control panel weight, kg, not more than 50
Escalator model weight, kg, not more than 350

Scope of delivery

  • training laboratory equipment– 1 pc.;
  • set of cable jumpers, inspection control, plug fitting of the inspection control – 1 set.;
  • USB-cable – 1 pc.;
  • passport – 1 pc.;
  • accompanying materials in electronic format – 1 pc.

Additional equipment

Necessary additional equipment:
