NTC-22.02.28 “Study of p-n junction”

Br0.00

The training system is designed to measure the current-voltage characteristics in the straight and reverse current direction, flowing through the junction, and the capacitance-voltage characteristic of the p-n transition.





Categories: ,

The training system is designed to measure the current-voltage characteristics (further – CVC) in the straight and reverse current direction, flowing through the junction, and the capacitance-voltage characteristic (dependence of transition capacity on applied voltage) of the p-n transition.

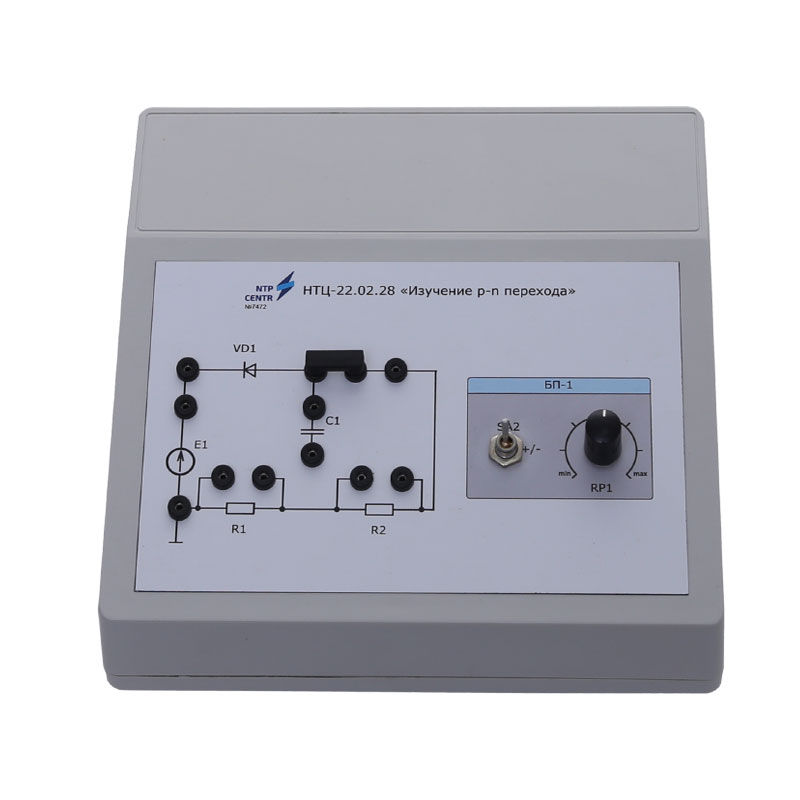

Structurally, the training system is the measurement unit, the front panel features:

  • Switch sockets;

  • Power polarity direction toggle-switch;

  • Voltage reference controller.



The back panel of training system features:

  • Measurement unit power supply fuse;

  • Cable inlet;

  • Power toggle-swith.



The training system is supplied with a set of methodical and technical documentation for teaching staff.











Experiments provided

1. Study of the CVC diode.
2. Measurement of the barrier capacity of p-n transition.

Technical specifications

Power supply ~50 Hz 220 V (single-phase 220 V, 50 Hz)
Power consumption, W, max 100
Overall dimensions, max
width, mm 220
height, mm 80
depth, mm 220
Weight, kg, max 3

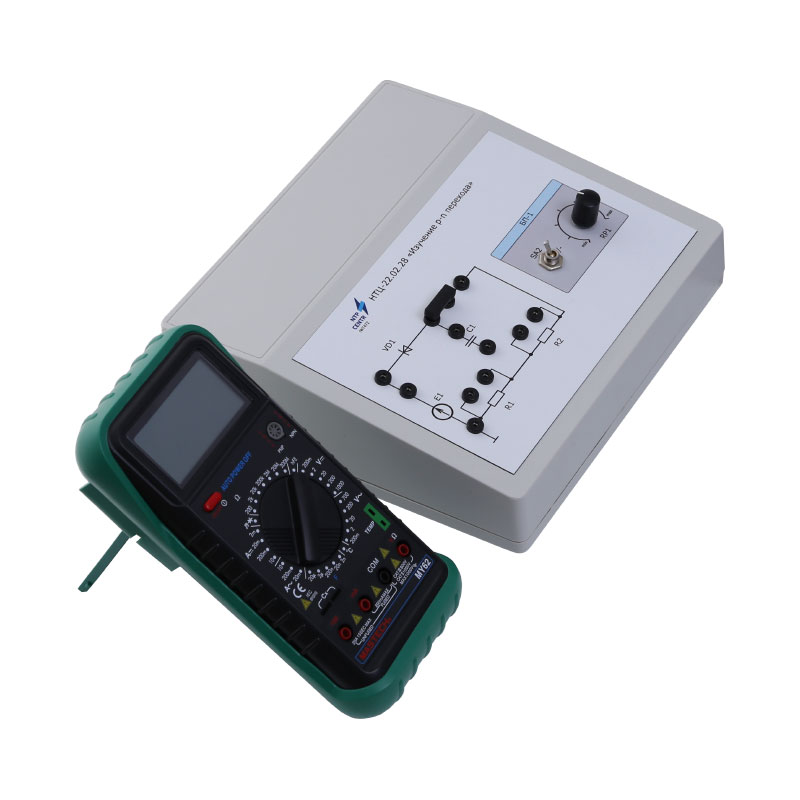

Scope of delivery

• training laboratory system – 1 pc.;
• multiple-purpose meter – 2 pcs.;
• capacity measurement – 1 pc.;
• passport – 1 pc.;
• CD with supplemental documentation – 1 pc.
