NTC-22.02.22 “Determination of the wave length of a helium-neon laser, using Michelson’s interferometer”

Br0.00

The training laboratory system is designed to determinate the wave length of a helium-neon laser, changing the interference pattern during mirror movement of interferometer, using the pair of perpendicular mirrors.

Categories: ,

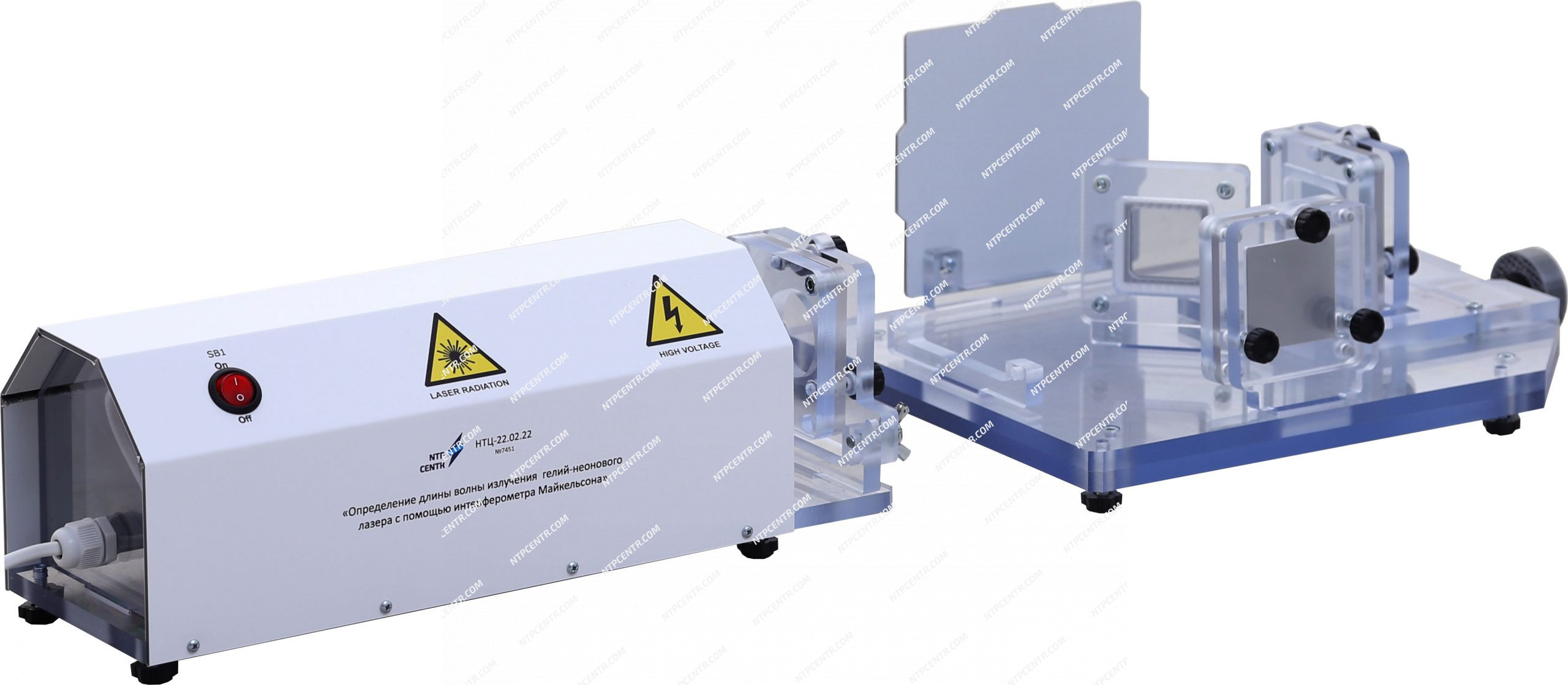

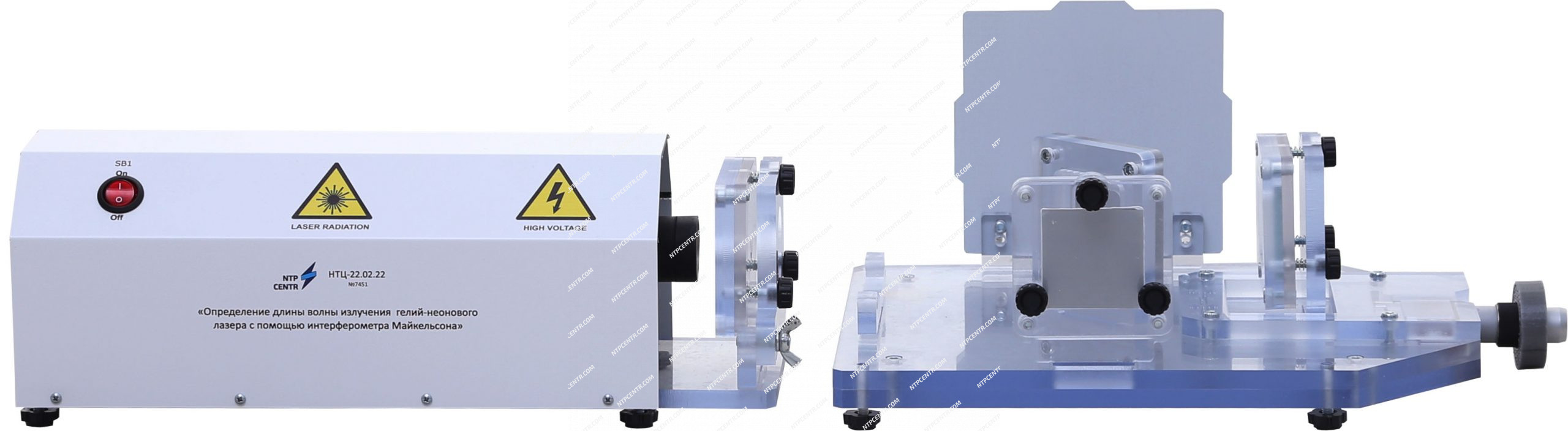

Structurally, the training system consists of the radiation source and Michelson’s interferometer.

The helium-neon laser is used as a radiation source. The power supply for a radiation source is installed in its case.

Michelson’s interferometer is made as two perpendicular mirrors, in which one is movable. The semitranslucent plate divides the ray into two ways.

The stand is accompanied with a set of teaching materials and technical documentation intended for the teaching staff.

Experiments provided

  1. To determinate the wave length of a helium-neon laser, using the Michelson’s interferometer.

Technical specifications

Power supply ~50 Hz 220 V (single-phase 220 V, 50 Hz)
Power consumption, kW, max 0,03
Overall dimensions of the radiation source, max
  length, mm 400
  height, mm 150
  depth, mm 150
Overall dimensions of Michelson’s interferometer, max
  height, mm 200
  depth, mm 280
  length, mm 400
Weight, kg, max 20

Scope of delivery

  • training laboratory system – 1 pc.;
  • passport – 1 pc.;
  • supplementary materials in electronic format – 1 pc.
