NTC-05.08.1 “Electric measurements”

Br0.00

The educational laboratory stand is intended for use as training equipment for conducting laboratory work in the course “Electrical Measurements.” During these labs, methods and tools for measuring electrical parameters and characteristics of electrical devices and elements are studied. Specifically, questions related to the determination and calibration of measurement instruments, expanding their measurement ranges through calculations of additional resistances and shunts, as well as methods for measuring signal amplitude using various detectors and oscilloscopes, are covered. Indirect methods for determining resistances of circuit elements using voltmeters and ammeters are also examined, along with bridge and resonance methods for precise measurement of resistances, capacitances, and inductances. An important part involves measuring deformation and temperature with specialized sensors (strain gauges, thermistors, thermocouples). Additionally, the operation of digital oscilloscopes for signal analysis is discussed, along with methods for measuring power in DC and AC circuits, including three-phase systems, and techniques for determining frequency and time intervals using oscilloscopes.

*For additional information, you can contact us via the phone numbers or email provided on the website.

Category:

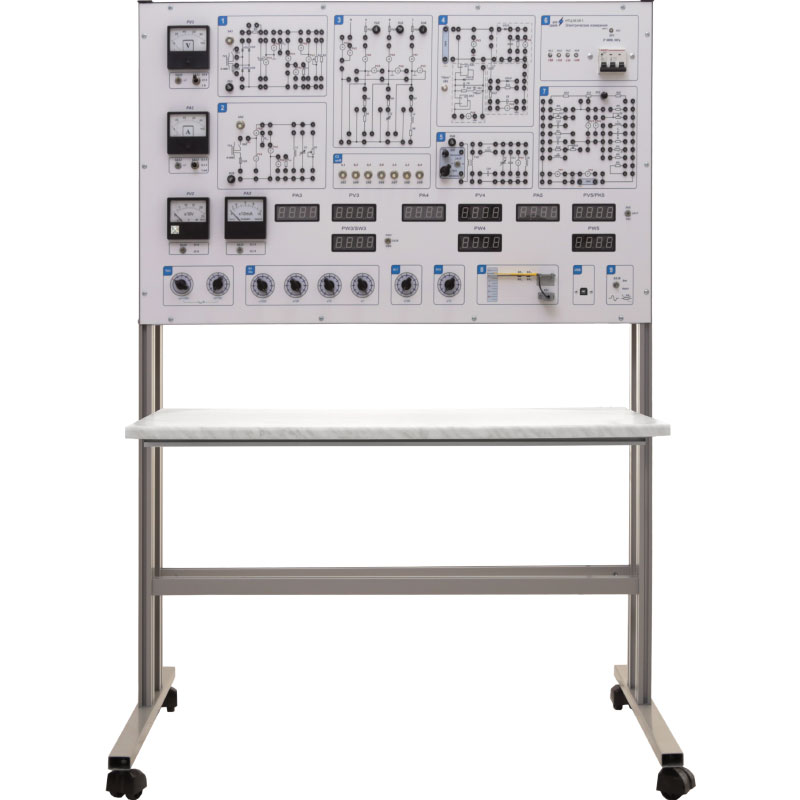

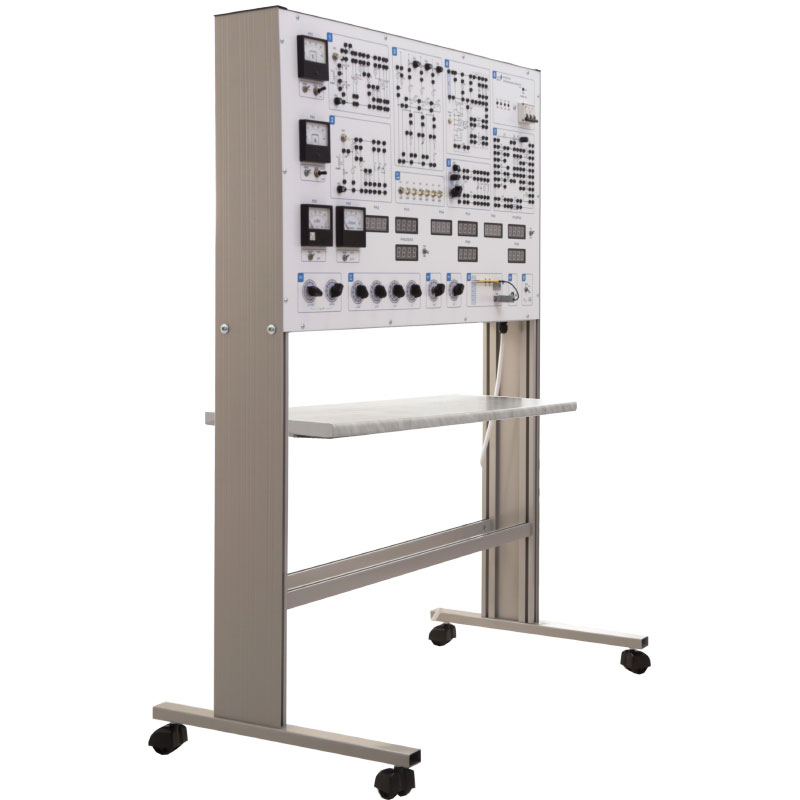

Structurally, the stand consists of a housing in which electrical equipment, electronic circuit boards, a front panel and a table top of an integrated desktop are installed.

Has two h/w versions: full size bench top version and table version.

The training system is supplied with:

  • a set of teaching materials and technical documentation intended for the teaching staff;
  • software, which allows to:
    • save the results of all measurements for subsequent analysis;
    • copy the results of all measurements to the clipboard;
    • visualize the waveforms of the studied processes.

Technical specifications

Power supply 3~50Hz 380V 3P+PE+N
Power consumption, Watt, max 300
Stand overall dimensions, max:
  Width, mm 1000
  Height, mm 1470
  Depth, mm 600
Weight, kg, max 50
Desktop version overall dimensions, max:
  Width, mm 1000
  Height, mm 680
  Depth, mm 600
Weight, kg, max 40

Scope of delivery

  • laboratory training system – 1 pc.;
  • passport – 1pc.;
  • set of jumpers – 1 set;
  • stopwatch – 1 pc.;
  • supplementary materials in electronic format – 1 pc.;
  • 2-channel digital USB-oscilloscope – 1 рс.

Additional equipment (specified when ordering)

Necessary additional equipment:
