NTC-11.90.1 “Hydraulics: filtration, soil”

Br0.00

The educational laboratory stand is designed for carrying out laboratory works in “Hydraulics”, “Mechanics of fluids and gases”, “Water supply and sewerage”, “Hydrology and hydrometry”, “Water supply and reconstruction of water supply systems of industrial enterprises”, “Water treatment, wastewater treatment technology”, “Intake structures” and others at universities and in secondary educational institutions.


Categories: ,
The stand has a closed water circulation system that doesn’t require connection to a water supply network and sewerage. The working fluid is water.

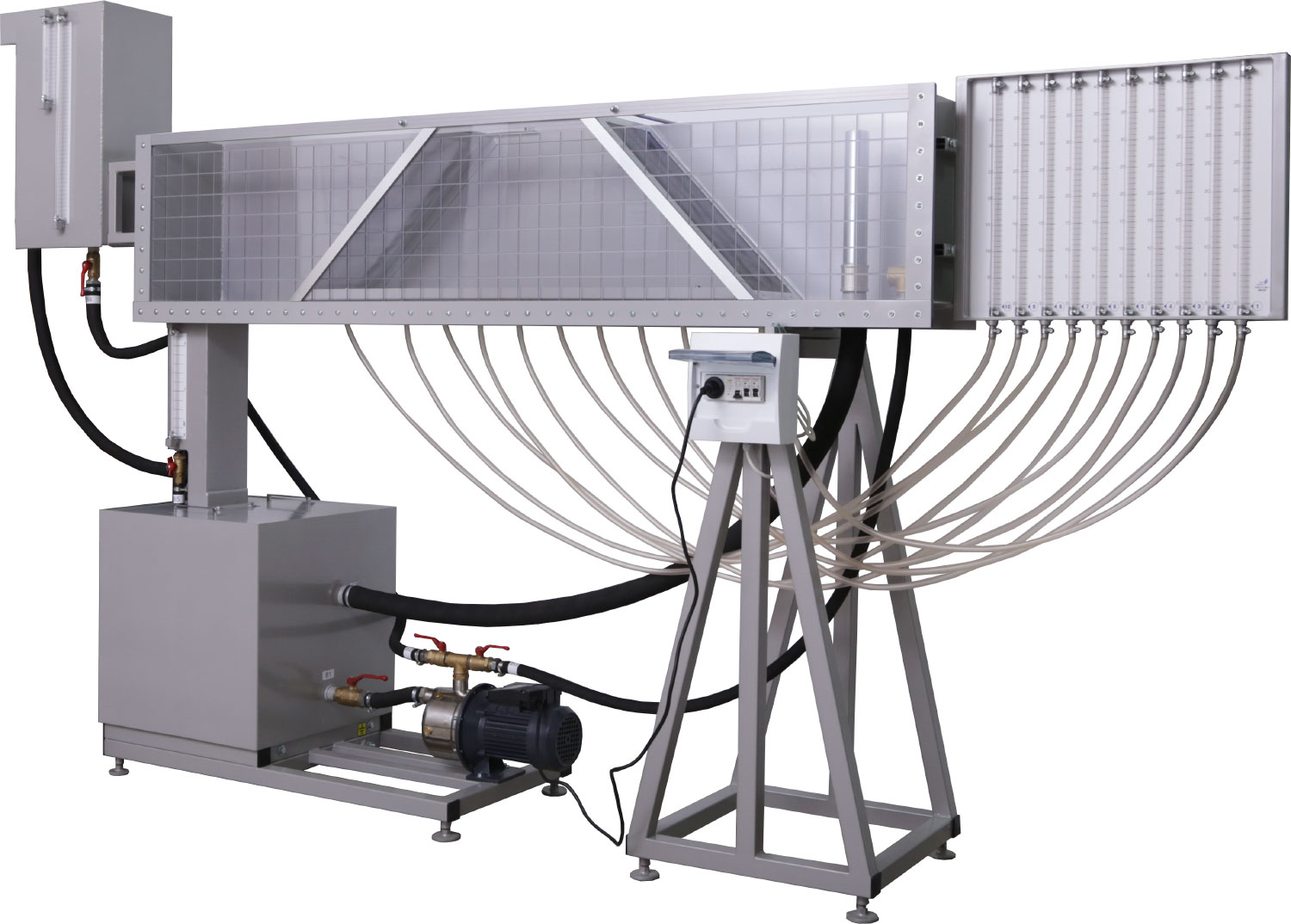

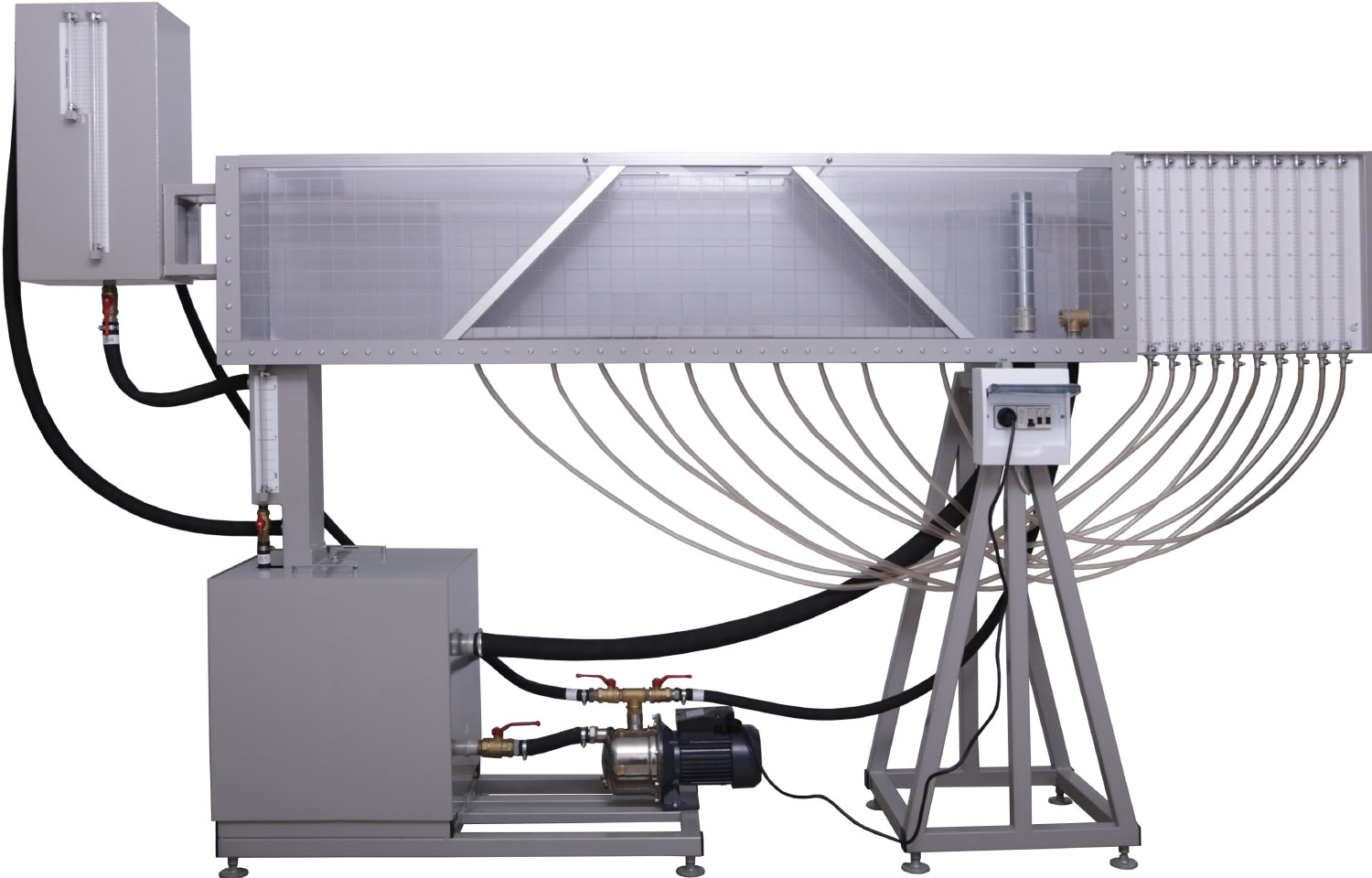

Structure of the stand:

  • rectangular tray;
  • pump unit;
  • Darcy’s instrument;
  • adjusting and connecting fittings;
  • information measuring system.

The rectangular tray has mechanisms for forming steady filtration. An insert is mounted in the tray to form a homogeneous and heterogeneous (with a core) earthen dam.

The pump unit consists of a pump connected to an electric motor and supplies water to the tray and reservoir of the Darcy instrument. At the same time, it is possible to regulate the water supply.

All devices of the stand are connected using elastic pipes.

Using replaceable overflow devices, it is possible to establish various pressures in front of the dam.

The data-measuring system allows measuring:

  • water flow through the earthen dam and through the Darcy device;
  • marks of 10 piezometric levels in the tray;
  • marks of 2 piezometric levels in the Darcy device.

The training system is supplied with a set of methodological and technical documentation intended for the teaching staff.

Experiments provided

  1. Determination of ground filtering coefficient.
  2. Determination of flow rate through the body of an earth dam.
  3. Determination of flow rate through the body of an earth dam with a core.
  4. Plotting the drawdown curve.

Technical specifications

Power supply ~50 Hz 220 V (single-phase 220 V, 50 Hz)
Power consumption, kW, max 0,37
Working fluid water
Tray dimensions, mm, max 2000х250х400
Tank volume m3, max 0,125
Liquid volume m3, max 0,1
Dam soil, m3, max 0,06
Pump feed, l/min 5…40
Overall dimensions, max
  width, mm 3150
  height, mm 2000
  depth, mm 600
Weight, kg, max 180

Scope of delivery

  • training laboratory system – 1 pc.;
  • accompanying materials in electronic format – 1 pc.;
  • passport – 1 pc.
