The training laboratory system is designed for studying the motor faults and acquisition of skills to identify them.

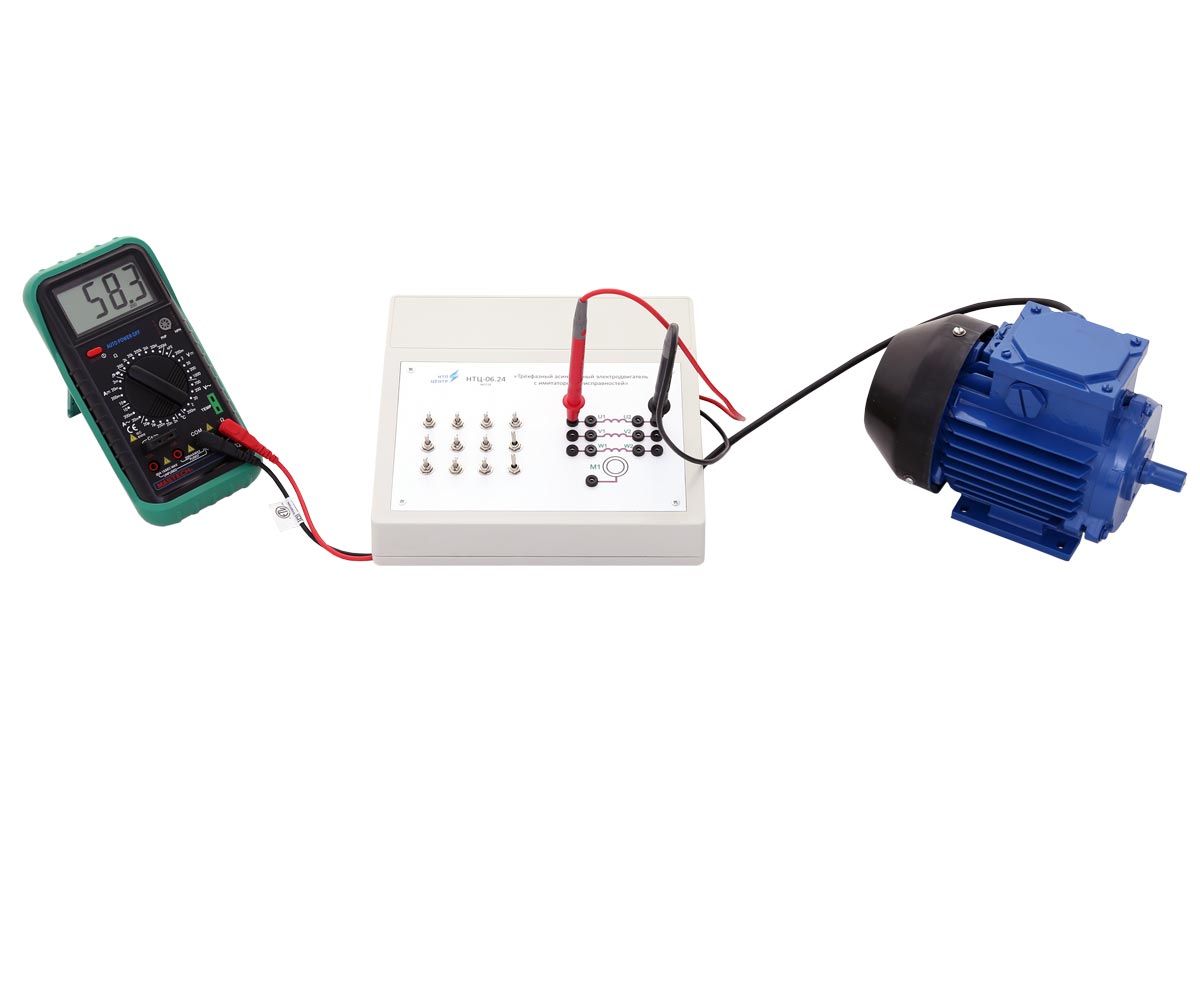

Structurally, the training system consists of the motor with input fault unit. Multimeter is connected to the system. Terminals of the motor windings are located on the front panel of the unit, that provides quick and convenient access to them during faults identification.
Fault simulator provides the possibility of simulating several faults simultaneously. Fault diagnosis is performed, using a multimeter.
The training system is supplied with technical and methodical documentation for teaching staff.
Studying of the training system.
Faults identification of asynchronous motor.
Motor overall dimensions:
Scope of delivery
asynchronous electric motor – 1 pc.;
multimeter – 1 pc.;
passport – 1 pc.;
accompanying materials in electronic format – 1 pc.
