NTC-15.98 “Complex electronic system of transmission control (CESTC) for tractor Belarus 3022.1”
Br0.00

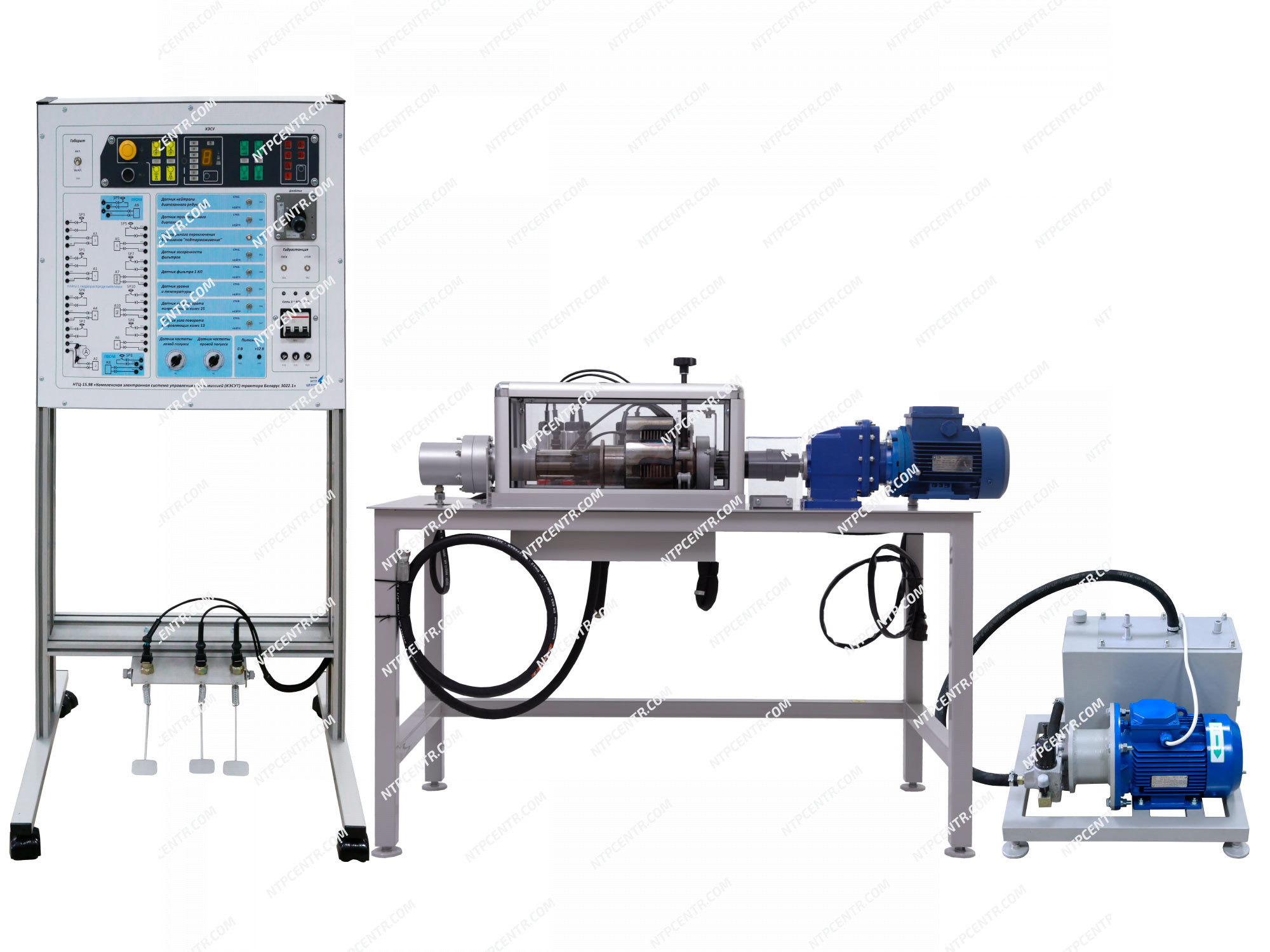

The stand allows training in tractor operation using complex electronic system of transmission control.
- control module;
- hydraulic module;
- hydrostation.
Control module has a body and front panel where are mounted controls, commutation and LEDs.
Hydraulic module consists of a frame and a table. On the table are installed: a plate with electric hydraulic distributors, a gear shaft with a single clutch and a speed gear, an electric shaft drive. This module is designed to demonstrate the operation of a single friction clutch of the gearbox.
Hydrostation is placed inside of the frame or next to it and dedicated to create a working fluid pressure in the hydraulic system.
Unit of malfunctions simulation includes the following malfunctions:
- Abruption of wire in CESTC – electromagnets of the plate distributors and the distributors of rear PTO, front PTO.
- Short circuit of CETSC wires – electromagnets of the plate distributors and the distributors of rear PTO, front PTO.
- Abruption of wire in CESTC – pressure sensors.
- Short circuit of CETSC wires – pressure sensors.
- Step up voltage of power supply.
The stand is accompanied with a set of teaching materials and technical documentation intended for the teaching staff.
Experiments provided
- General information about complex electronic system of transmission control;
- Study of order of transmission switching, actuation of slow braking mode, storage of the chosen transmission. Actuation of DB (differential blocking), FDA (front driving axle), rear PTO, front PTO.
- Diagnosis of electronic systems malfunctions:DB (differential blocking), FDA (front driving axle), rear PTO, front PTO, transmission controller.
Technical specifications
| Power supply | 3~380/220 V, 50 Hz | |
| Power consumption, kW, max | 2 | |
| Carrying fluid | mineral oil | |
| Carrying fluid volume, dm3 | 7 | |
| Maximal pressure in hydraulic system, MPa | 6 | |
| Control unit overall dimensions, max: | ||
| Width, mm | 650 | |
| Height, mm | 1470 | |
| Depth, mm | 600 | |
| Hydraulic unit overall dimensions, max: | ||
| Width, mm | 1200 | |
| Height, mm | 1100 | |
| Depth, mm | 600 | |
| Hydro station overall dimensions, max: | ||
| Width, mm | 450 | |
| Height, mm | 600 | |
| Depth, mm | 450 | |
| Weight, kg, max | 220 | |
Scope of delivery
- training laboratory system – 1 pc.;
- passport – 1 pc.;
- supplementary materials in electronic format – 1 pc.
