NTC-15.52 “Charging devices”

Br0.00

The training laboratory system is intended to study charging device operating principle and various charging methods during experimental and practical sessions at secondary specialized colleges and higher education establishments.


Categories: ,

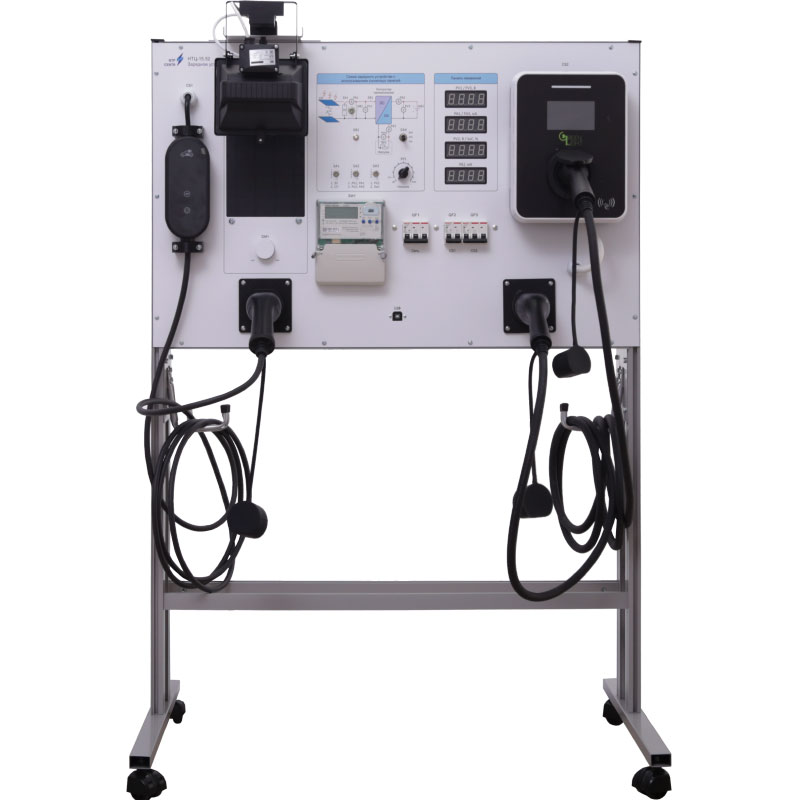

The training system consists of a housing that contains: electrical equipment, electronic boards, a front panel and a benchtop of an integrated workbench.

The stand housing accommodates:

  • rapid charging unit for electric vehicle battery;
  • external charger of an electric vehicle;
  • charging device starting and protection equipment;
  • electronic electricity meter;
  • solar panel based electric vehicle battery charging system;
  • spotlight for the solar panel;
  • variable load unit;
  • digital unit to measure parameters of the objects being tested, with a data indication panel to display the testing results.

The front panel shows a functional diagram of the rapid charging device and contains the following elements:

  • digital indicators;
  • controls;
  • starting and protection equipment.

The stand is accompanied with a set of teaching materials and technical documentation intended for the teaching staff.

Experiments provided

  1. Studying a charging device and operating principle of an external charging station.
  2. Studying design and operating principle of a rapid charging station.
  3. Studying design and operating principle of a solar panel based charging device.

Technical specifications

Power supply, V 380
Consumed power, kW, max 6
Overall dimensions, max
  length, mm 1000
  height, mm 1470
  width, mm 600
Weight, kg, max 55

Scope of delivery

  • training laboratory system – 1 pc.;
  • set of jumpers – 1 pc.;
  • passport – 1 pc.;
  • supplementary materials in electronic format – 1 pc.
