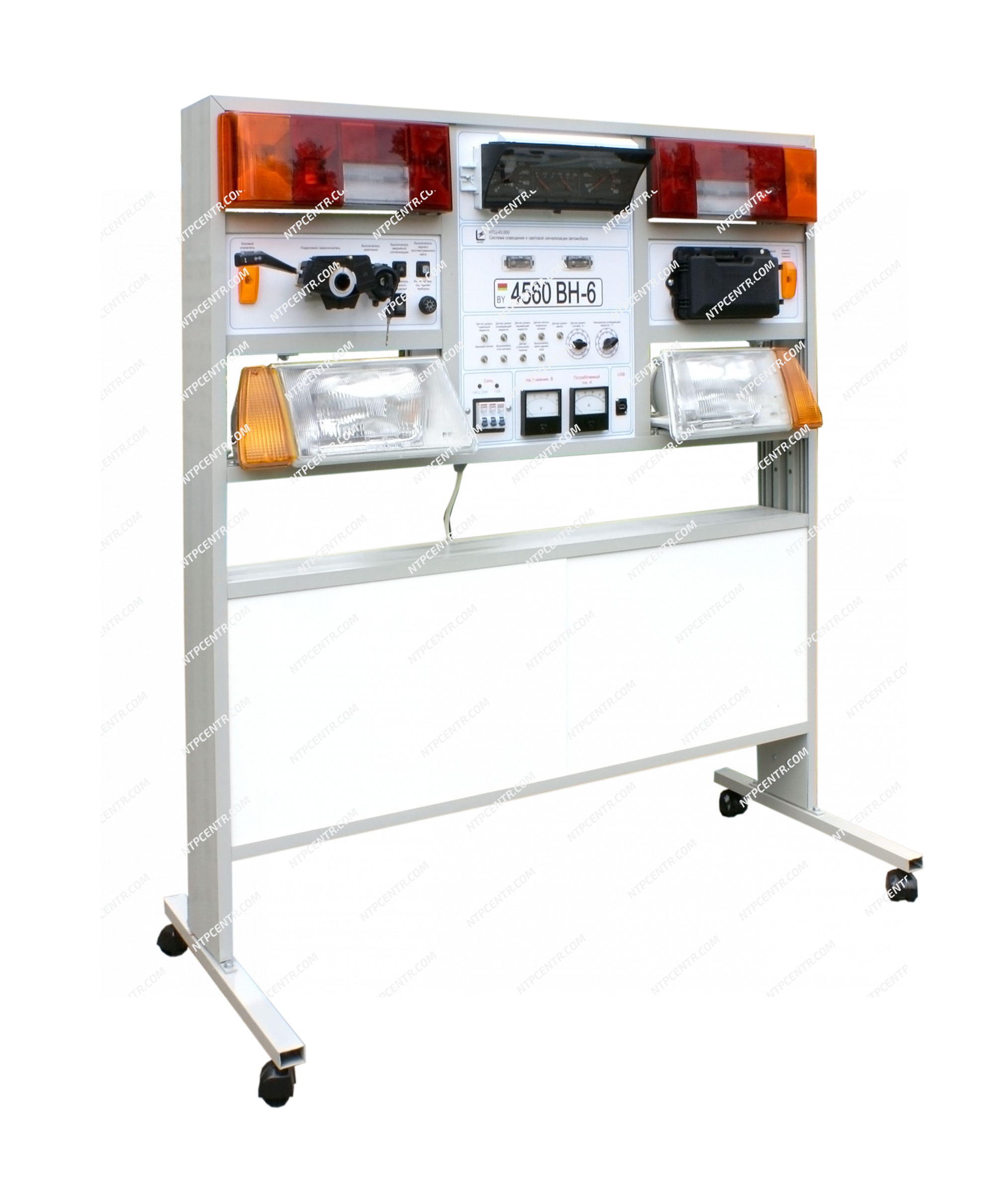

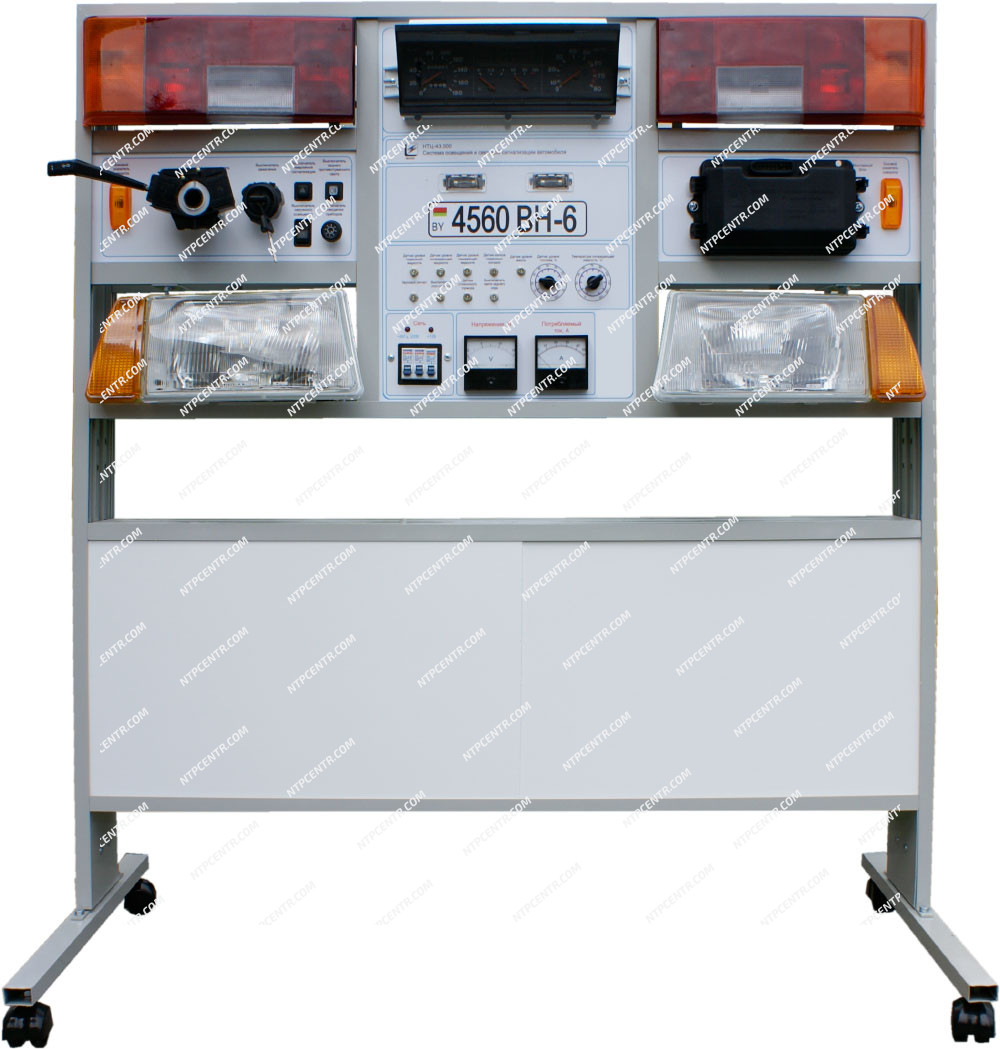

NTC-15.43.2 “Lighting and signalling system in vehicles M1”

Br0.00

The laboratory stand is designed for using as educational equipment for laboratory and practical courses in the following subjects: motor vehicle construction, motor vehicle technical exploitation.

Categories: ,
The laboratory system is designed for using as educational equipment for laboratory and practical courses in the following subjects: motor vehicle construction, motor vehicle technical exploitation.

The training system provides the possibility of direct electrical measurements in the circuits of investigated systems, including malfunctions and their further diagnosis, adjustment of parameters with usage of any known diagnostic equipment for investigated systems of car engines.

Malfunctions module allows to perform 24 malfunctions: abruption of wires, chassis fault, wires shorting. Faults introduction is realized not from the stand panel as it is done in NTC-15.43, but by means of a PC with special software.





Experiments provided

  1. Headlights. Study of construction and operation. Troubleshooting.
  2. Sound signal (klaxon). Study of construction and operation. Troubleshooting.
  3. Rear lights. Study of construction and operation. Troubleshooting.
  4. Blinkers. Study of construction and operation. Troubleshooting.
  5. Alarm. Study of construction and operation. Troubleshooting.
  6. Power supply of illumination and warning lights of motor vehicle.
  7. Exploitation of instruments of illumination and warning lights of motor vehicle.
  8. Measurement & control systems and instruments.

Technical specifications

Power supply car battery
Power consumption, Watt less than 300
Stand overall dimensions:
  Width, mm 1300
  Height, mm 1550
  Depth, mm 650
Weight, kg less than 70

Scope of delivery

  • training laboratory system – 1 pc.;
  • multimeter – 1 pc.;
  • passport – 1 pc.;

Necessary additional equipment
