NTC-20.03 “Photoelectric converters”

Br0.00

The training laboratory system allows to carry out practical works on studying the processes of photoelectric energy conversion.
It is designed to be used as a teaching facility for practical and laboratory classes on studying the processes of solar radiation to electricity conversion, determining KPI and characteristics of converters in higher and secondary technical institutions.

Category:

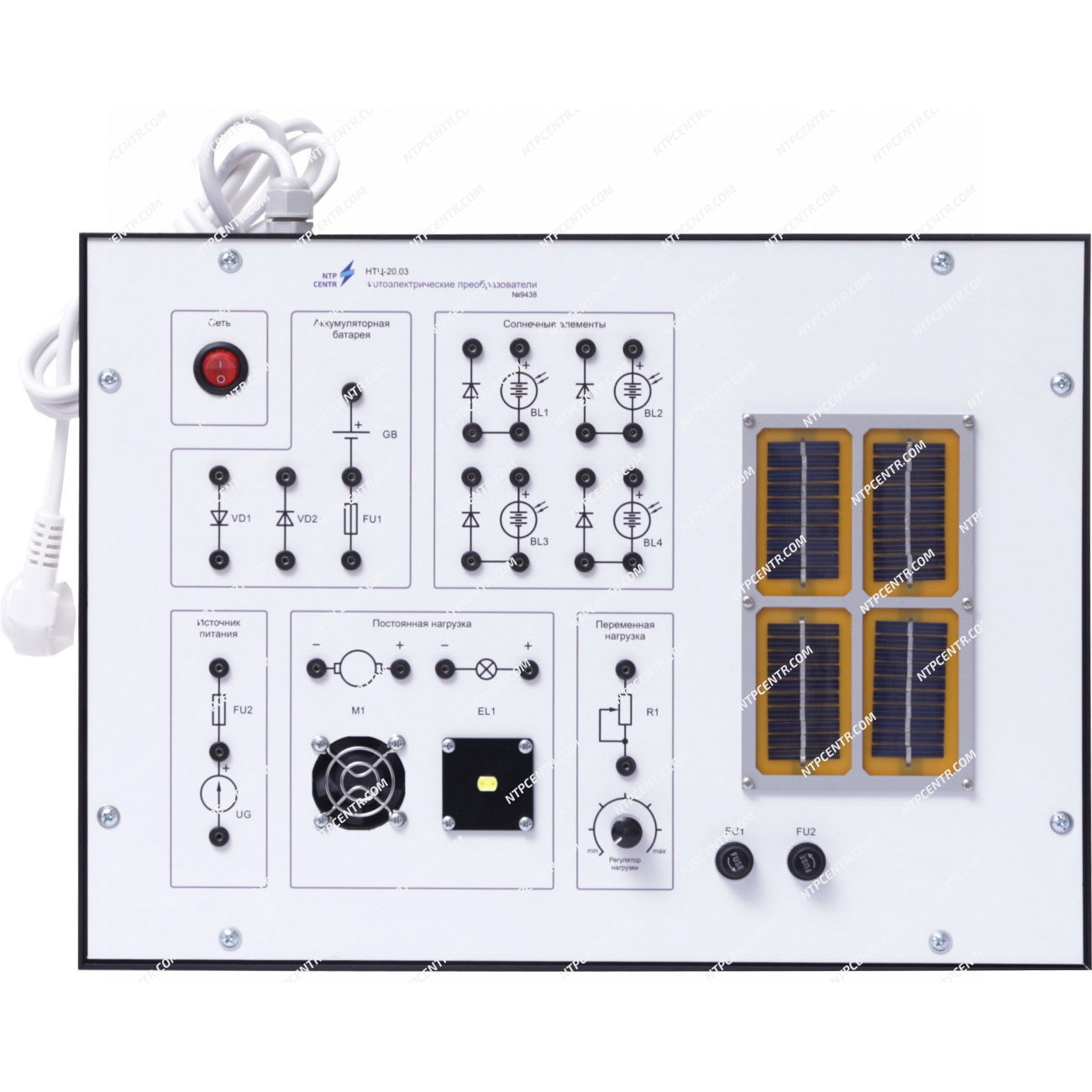

On the front panel of the bench the following equipment is located:
  • 4 solar cells 6W/40mА;
  • accumulator battery;
  • fan DC 12V;
  • LED point-light 12V;
  • active variable load;
  • independent voltage source 12V.

The electrical connections between separate nodes in performed by flexible jumpers with plug connectors.

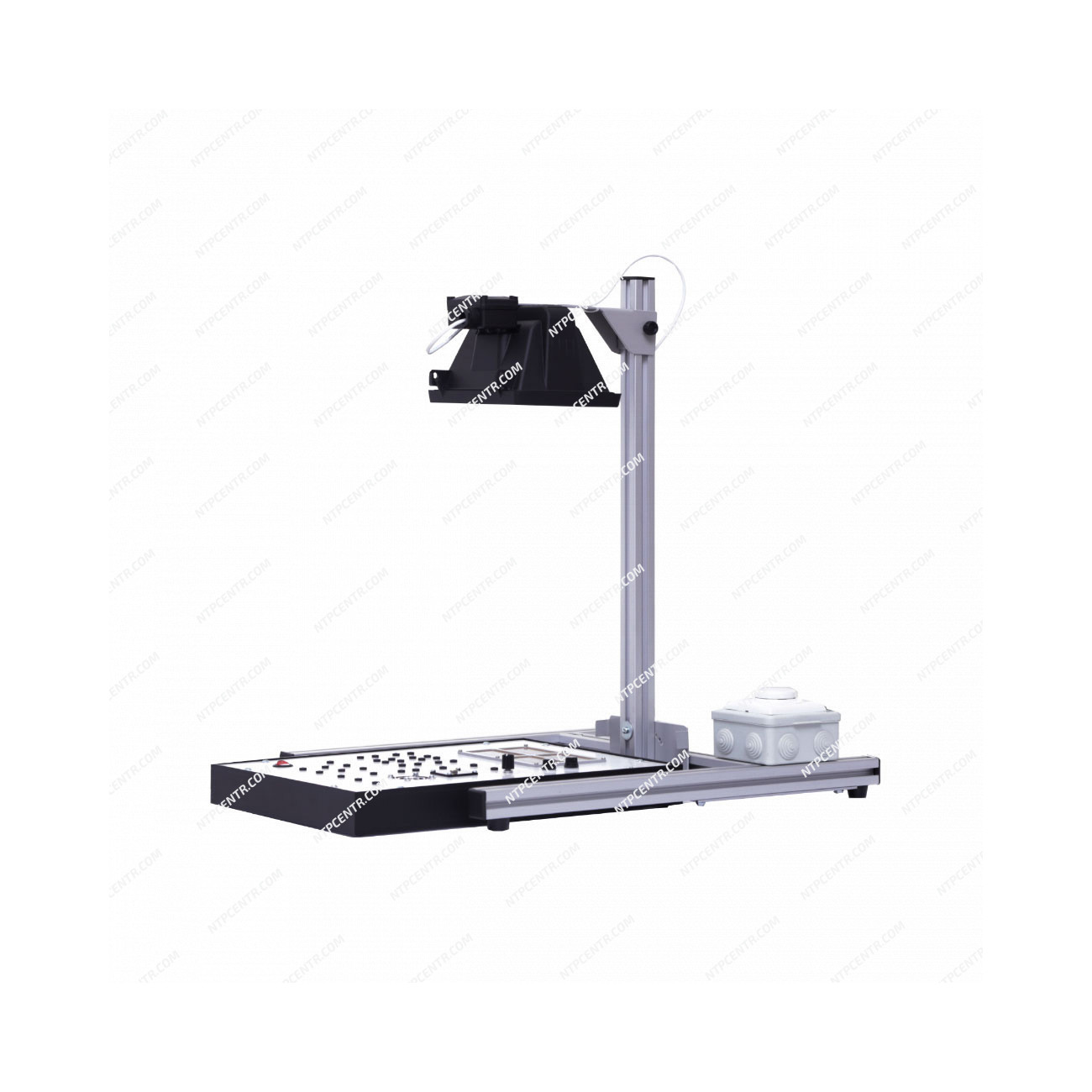

The bench is complected with a light source with adjustable intensity, elevation and angle of slope. For current measurement the bench is complected with conducting bridges in the form of jumpers.

The training system is supplied with a set of methodical and technical documentation of teaching staff.

Experiments provided

  1. Familiarization with solar cells operation principle.
  2. The study of solar cell characteristics.
  3. The method of solar cells termination in groups
  4. Solar battery operation while shading separate modules.
  5. Electrical specifications of solar batteries.
  6. The characteristics of solar batteries depending on radiation intensity, beam incidence angle and temperature.
  7. Solar accumulator battery.

Technical specifications

Power source ~50Hz 220V (single-phase 220V 50Hz)
Power consumption, kW, max 0,01
Bench overall dimensions, max:
  width, mm 420
  height, mm 100
  depth, mm 305
Weight, kg, max 10

Scope of delivery

  • training laboratory bench – 1 pc.;
  • light source – 1 pc.;
  • connecting jumpers and cables – 1 set.;
  • passport – 1 pc.;
  • accompanying materials in electronic format – 1 pc.

Additional equipment

Necessary additional equipment:
