NTC-22.04.8 “Unifilar suspension”

Br0.00

The training laboratory system is designed to conduct laboratory experiments in physics allowing missile flying speed to be determined using the ballistic pendulum method. The determination of the inertia moment of solid bodies using the torsion oscillations method can be conducted as well.

Categories: ,
Structurally, the training laboratory equipment consists of a laboratory unit and a control unit (electronic stopwatch).

The unit is performed as a basement on height adjustable supports. A vertical rod and an optical sensor are installed on the basement. A rotatable frame is suspended on the upper bracket by means of a steel thread. The central cross-arm of the rotatable frame can freely move along the guideways changing the area necessary for the fixation of the tested pattern. The tested pattern is fixed between two cones of the rotatable frame. The thread tension can be adjusted by changing the position of the frame upper cross-arm.

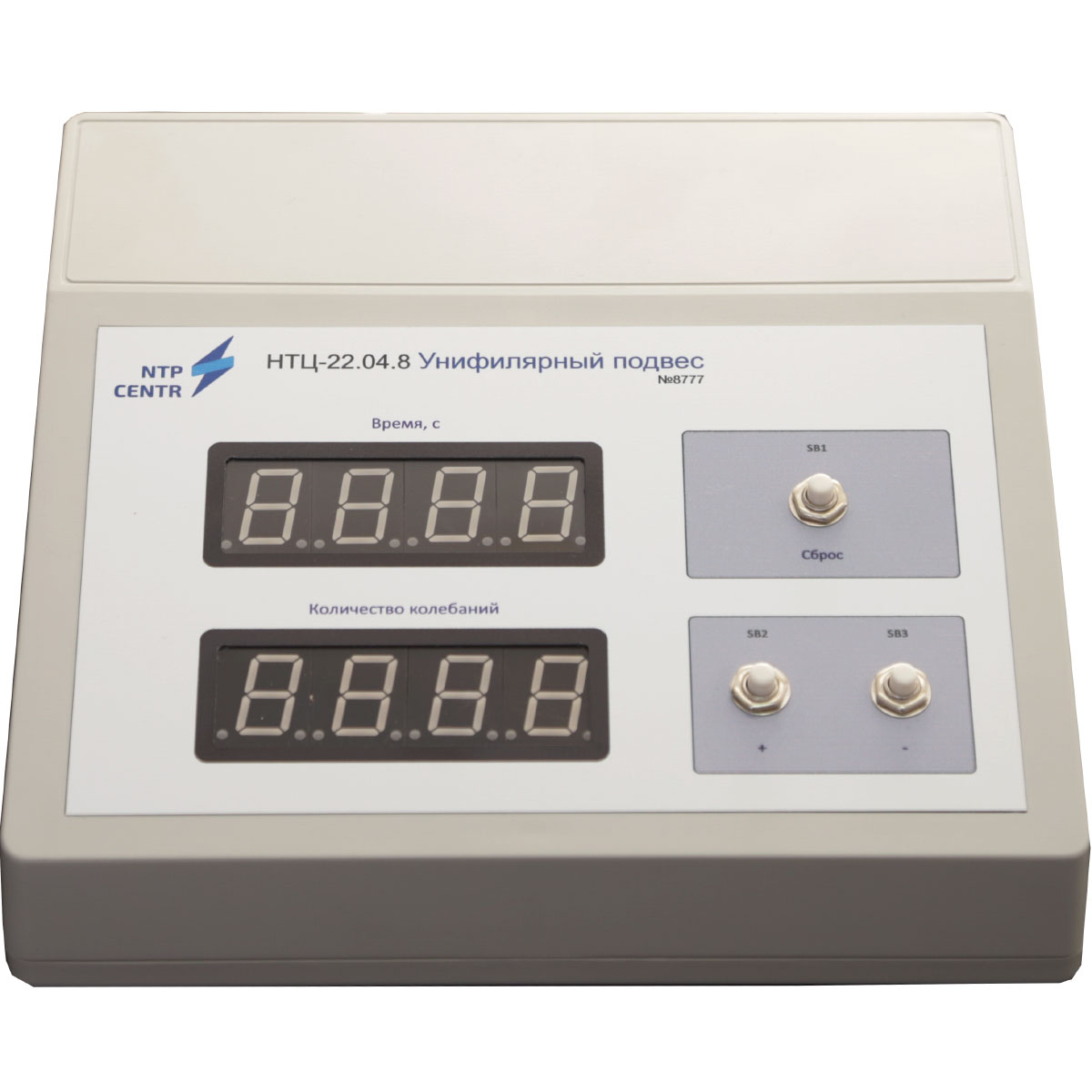

An electronic stopwatch is used for fixing the time of the pendulum oscillations.

The stand is accompanied with a set of teaching materials and technical documentation intended for the teaching staff.

Experiments provided

  1. Experimental determining the projectile velocity using a torsion ballistic pendulum.
  2. Determining the inertia moment of the frame of a torsion ballistic pendulum.

Technical specifications

Power supply ~50Hz 220V (single-phase 220V 50Hz)
Stand overall dimensions, max
  width, mm 300
  height, mm 500
  width, mm 300
Electronic stopwatch overall dimensions, max
  width, mm 250
  height, mm 100
  depth, mm 250
Weight, kg, max 5

Scope of delivery

  1. training laboratory system – 1 pc.;
  2. tested pattern – 3 pcs.;
  3. passport – 1 pc.;
  4. supplementary materials in electronic format – 1 pc.
