NTC-22.04.13 “Study of inert properties of solid bodies”

Br0.00

The training laboratory bench allows the user to determine the moment of inertia of solid bodies, using the method of torsion oscillations.

Categories: ,

Structurally, the training laboratory equipment consists of a laboratory unit and a control unit (electronic stopwatch).

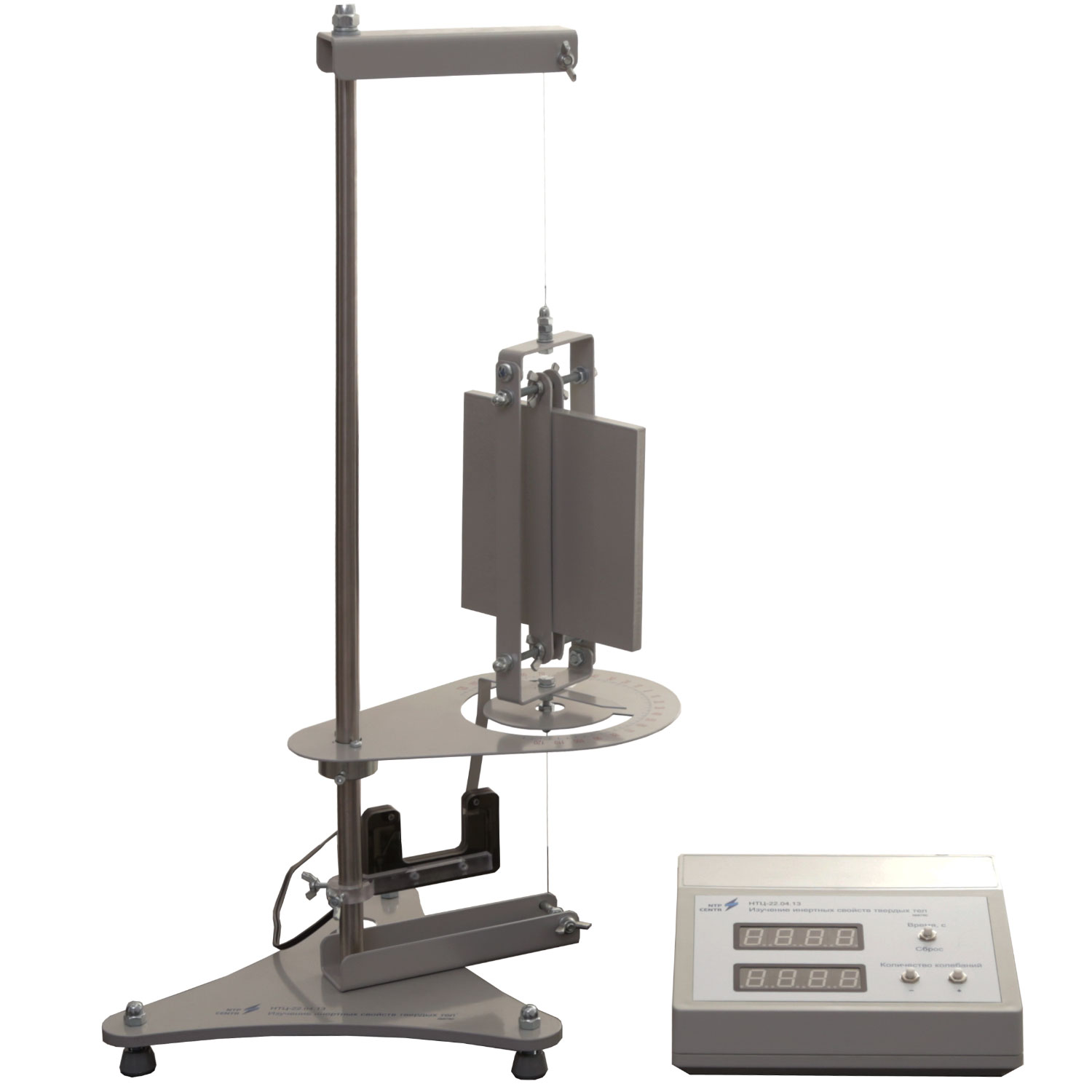

The bench is a foundation on height-adjustable legs. A vertical rod with an optical sensor is fastened on the foundation. A rotating frame is suspended on a steel thread on the upper bracket. A clamping plate of the rotating frame can freely move along the rails, changing the area necessary for fixing the test pattern. The thread tension can be adjusted by the tension screw.

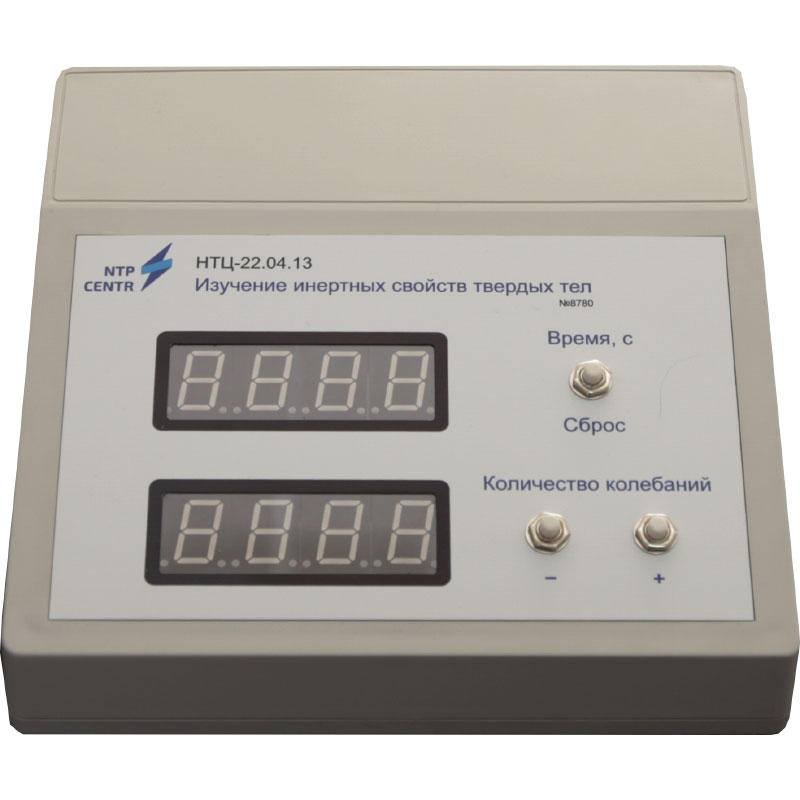

An electronic stopwatch is used for timing the pendulum oscillation.

The stand is accompanied with a set of teaching materials and technical documentation intended for the teaching staff.

Experiments provided

  1. Determining the inertia moment of the rigid bodies.

Technical specifications

Voltage ~50Hz 220V (single-phase 220V 50Hz)
Power consumption, kW, max 0,03
Stopwatch accuracy, sec 0,1
Experimental module dimensions, max
  width, mm 350
  height, mm 670
  depth, mm 350
Electronic stopwatch dimensions, max
  width, mm 228
  height, mm 76
  depth, mm 230
Weight, kg, max 5

Scope of delivery

  • training laboratory system – 1 pc.;
  • ruler – 1 pc.;
  • set of flat figures – 1 pc.;
  • supplementary materials in electronic format – 1 pc.;
  • passport – 1 pc.
