NTC-22.03.3 “Investigation of resonance in alternating current circuit”

Br0.00

The training laboratory unit is designed to investigate the resonance phenomena during practical and laboratory experiments at universities and secondary educational institutions.

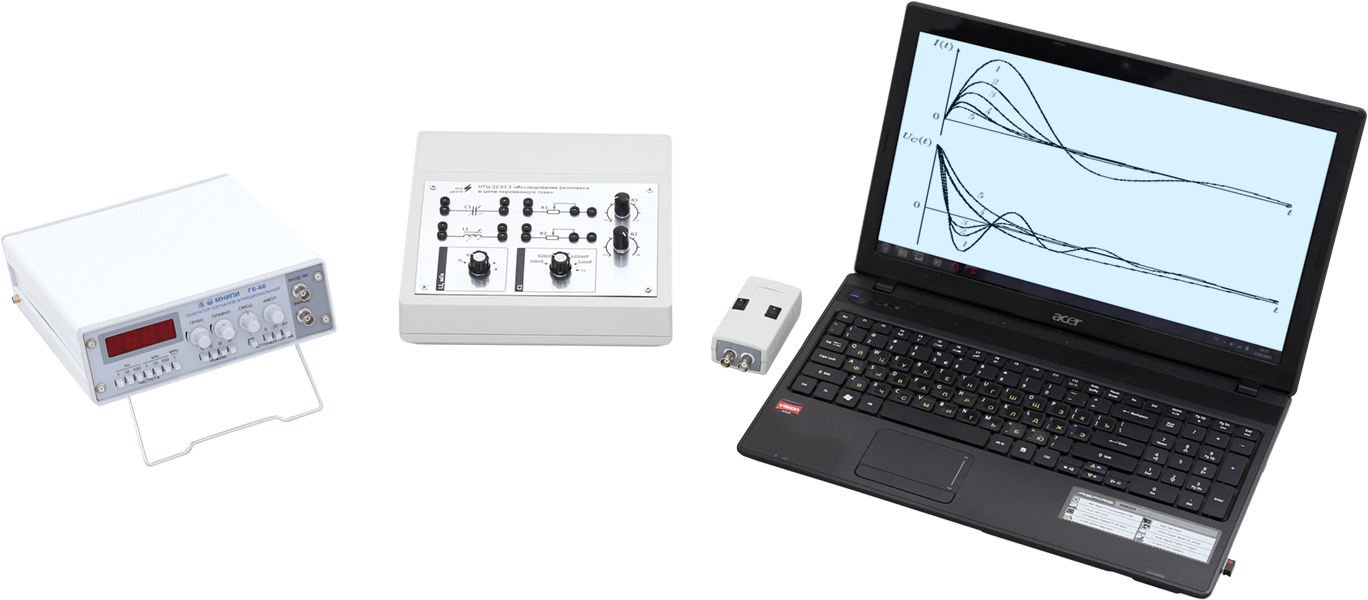

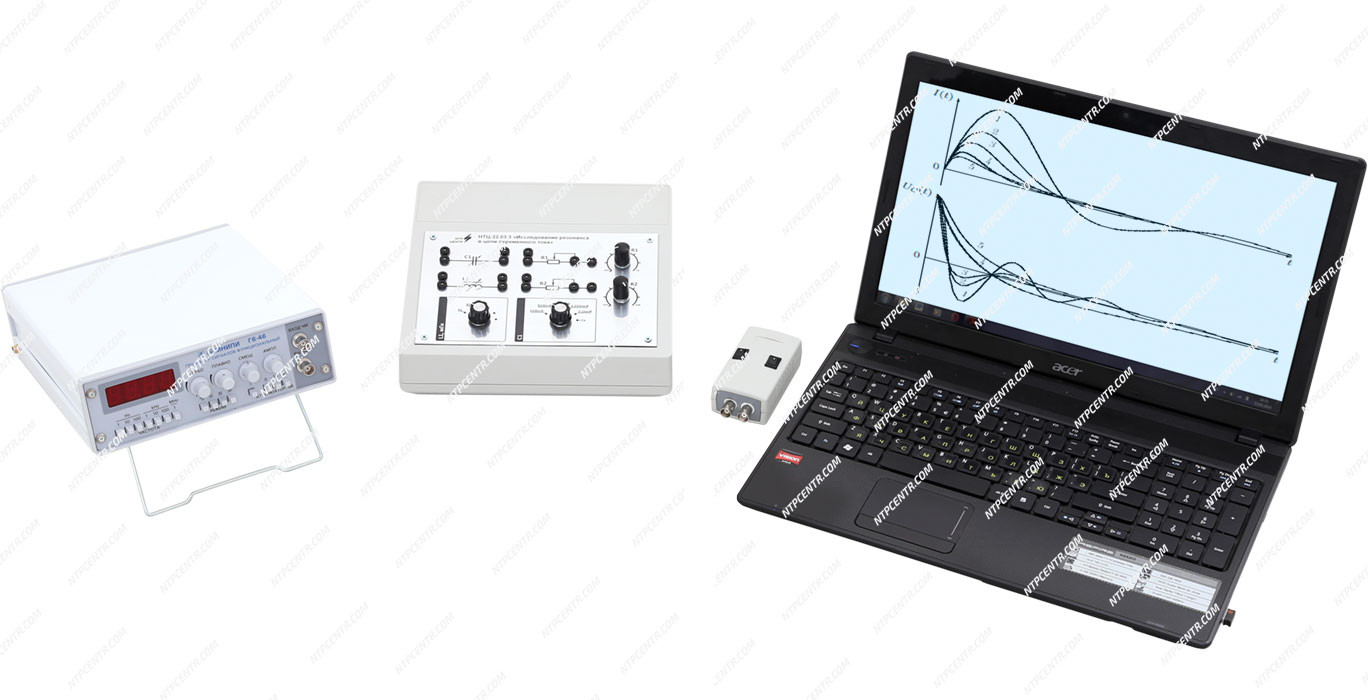

Structurally the training laboratory equipment is made as a table version.

At the front panel are placed:

switch of nominal capacity;
switch of nominal inductance;
handles of potentiometers;
slots for mounting the circuit with connecting jumpers.

At the top part of the panel are placed controls of built-in signal generator:

bandswitch;
regulators of frequency and signal amplitude;
output terminals.

The stand is accompanied with:

a set of teaching materials and technical documentation intended for the teaching staff;
a software.

Experiments provided

Resonance in RLC series circuit.
Resonance in RLC parallel circuit.
Autonomous oscillations.

Technical specifications

Power supply		1~220V, 50Hz
Power consumption, kW, max		0,01
Stand overall dimensions, max
	width, mm	230
	height, mm	80
	depth, mm	220
Weight, kg, max		2

Scope of delivery

training laboratory unit – 1 pc.;
a set of connecting jumpers – 1 pc.;
measuring module – 1 pc.;
passport – 1 pc.;
supplementary materials in electronic format – 1 pc.

Additional equipment (specified when ordering)

Necessary additional equipment:

PC or laptop
