NTC-16.49 “Isolation valves testing”

Br0.00

The training laboratory system is designed for experimental studies of the shutoff and regulating characteristics of isolation valves for cold and hot water.


Category:

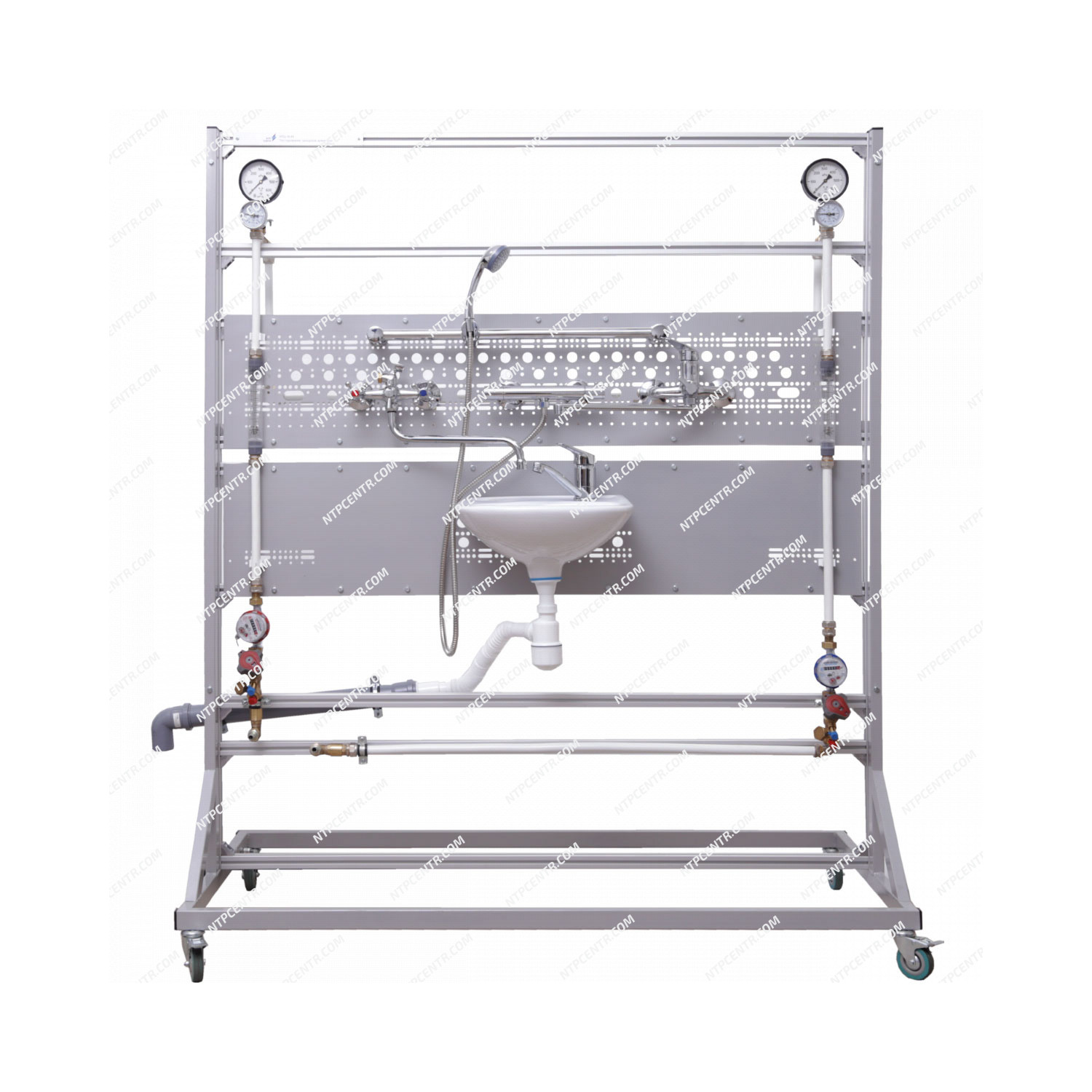

The training laboratory equipment is mounted at a mobile platform. At the mounting panel are installed and connected different mixers (with flywheels, with a lever and thermostatic).

A wash sink (or a tank) with a flushing device is installed at the stand. The stand is connected to a water-supply network. The stand is connected to the water supply system, for this are foreseen two branches of the stand-pipes for the cold and hot water.

Instruments’ system is represented by thermometers, pressure gauges, water flow meters, rotameters. The measurement system is duplicated for cold and hot water supply lines.

The mounting field allows to work out the technique of mounting the objects under study (mixers). Installation is completed with flexible hoses in a metal braid and shower racks. The installation of the hydraulic circuit was carried out using a metal-plastic pipe with a diameter of 20 mm and quick-release fittings.

The training system is supplied with technical and methodical documentation intended for teaching staff.

3D model

Experiments provided

  1. Studying the mixers.
  2. Mounting the unit and operation with equipment.
  3. Designation and symbol of elements.
  4. Armature characteristics.

Technical specifications

Power supply  batteries АА/ААА
Stand overall dimensions, max:
  width, mm 1600
  height, mm 1850
  depth, mm 800
Weight, kg, max 80

Scope of delivery

  • training laboratory system  – 1 pc.;
  • set of pipe fittings – 1 set.;
  • passport – 1 pc.;
  • accompanying materials in electronic format – 1 pc.

Additional equipment

Recommended additional equipment:

  • tools set.
