NTC-15.55 “Model of a wheel motor”

Br0.00

The training laboratory stand is intended to demonstrate and study design of a wheel motor at secondary specialized colleges and higher education establishments.

Categories: Automotive and tractor equipment, Electric Vehicle

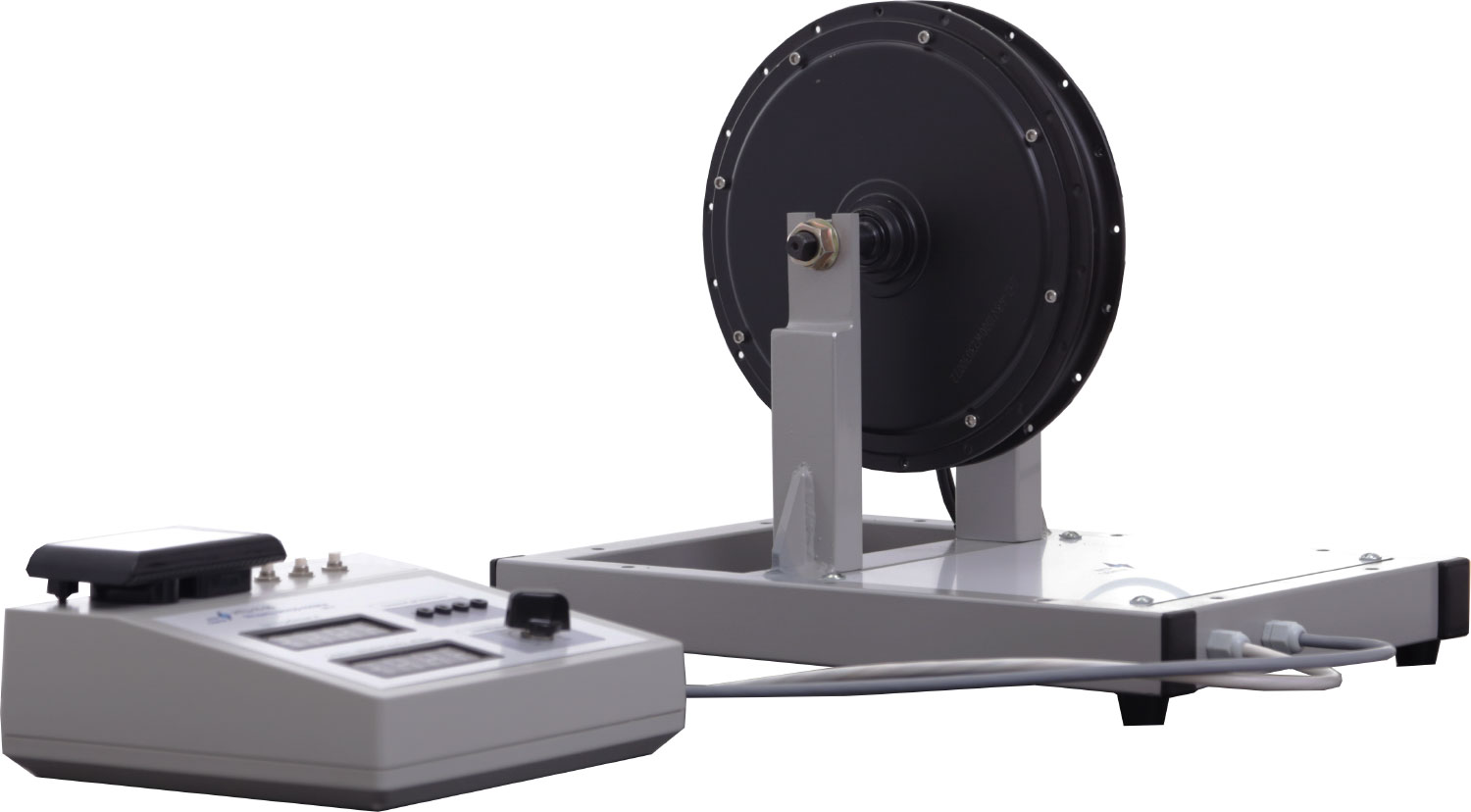

The stand is designed as a wheel motor model with cutaways in its end covers.

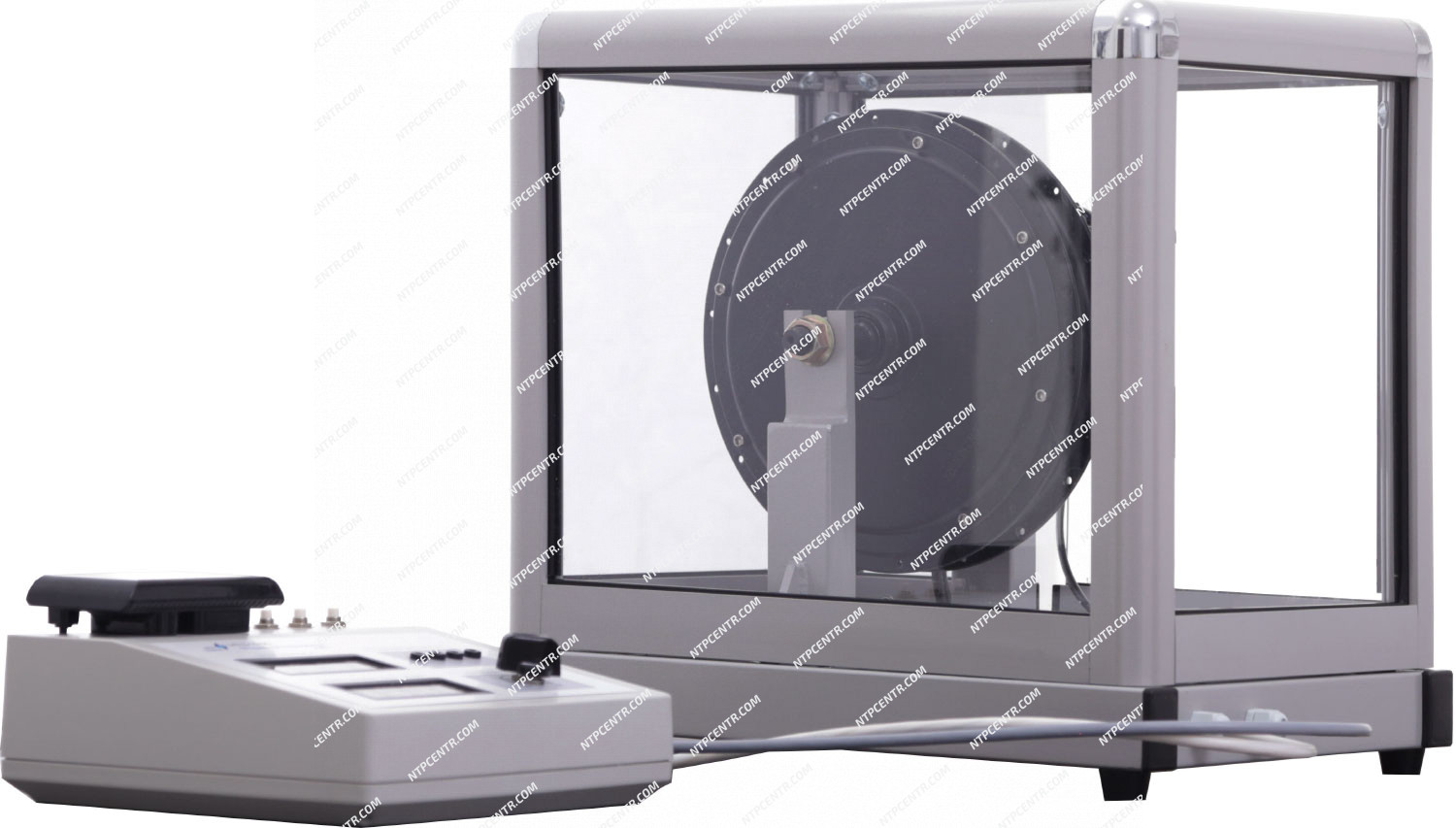

A wheel covered with a transparent enclosure is installed on a welded rack.

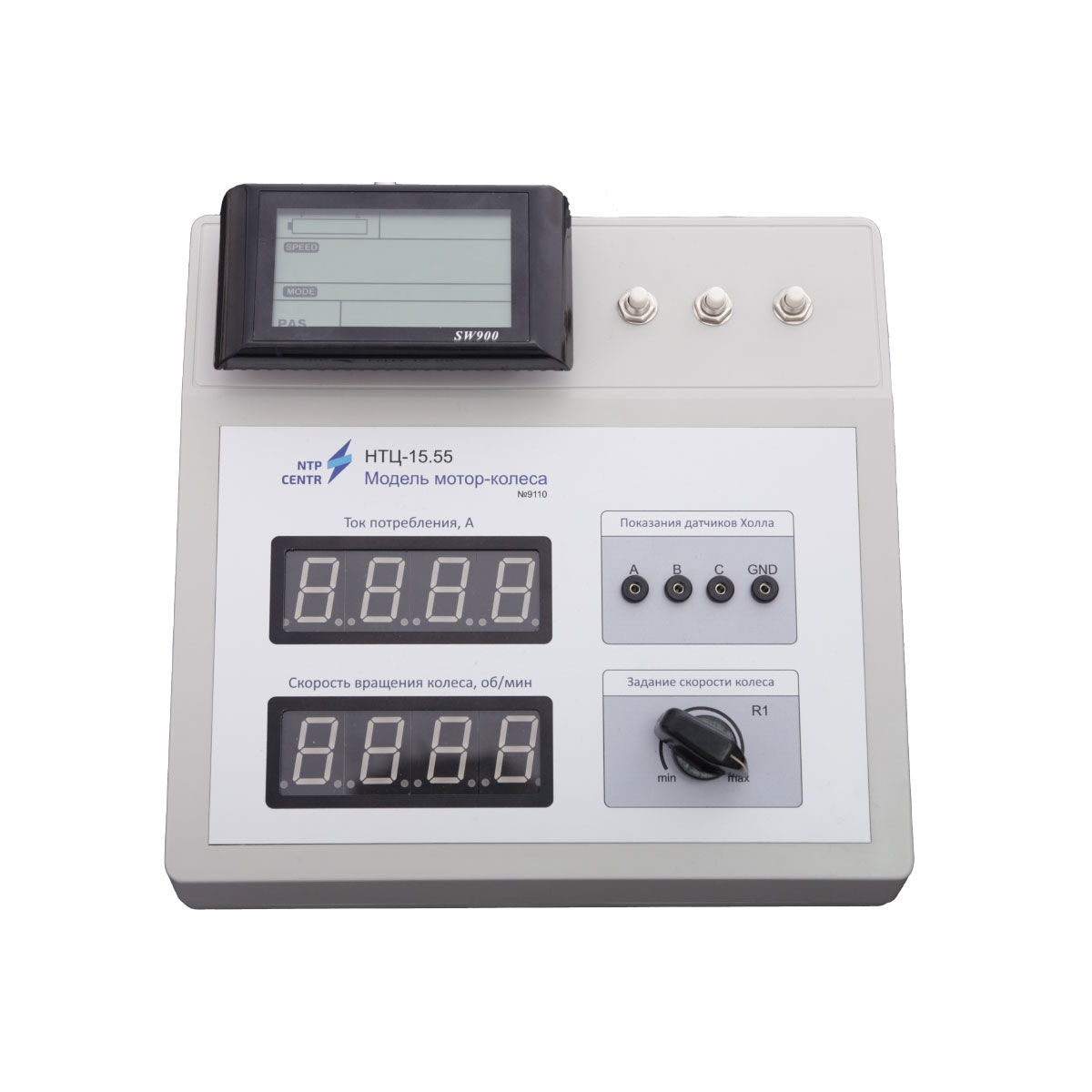

A control unit allows to start the wheel and regulate its rotation speed. A panel of the unit accommodates two 4-digit indicators to display the consumed current and the rotation speed of the wheel. On the right side of the panel, there are Hall sensor outputs to connect an oscilloscope (delivered separately).

Technical specifications

Power supply		1~ 220 V, 50 Hz
Power consumption, W, max		100
overall dimensions of the test objects, mm, max
	length, mm	450
	height, mm	420
	width, mm	300
Overall dimensions of the control units, mm, max
	width, mm	250
	height, mm	250
	depth, mm	100
Weight, kg, max		15
